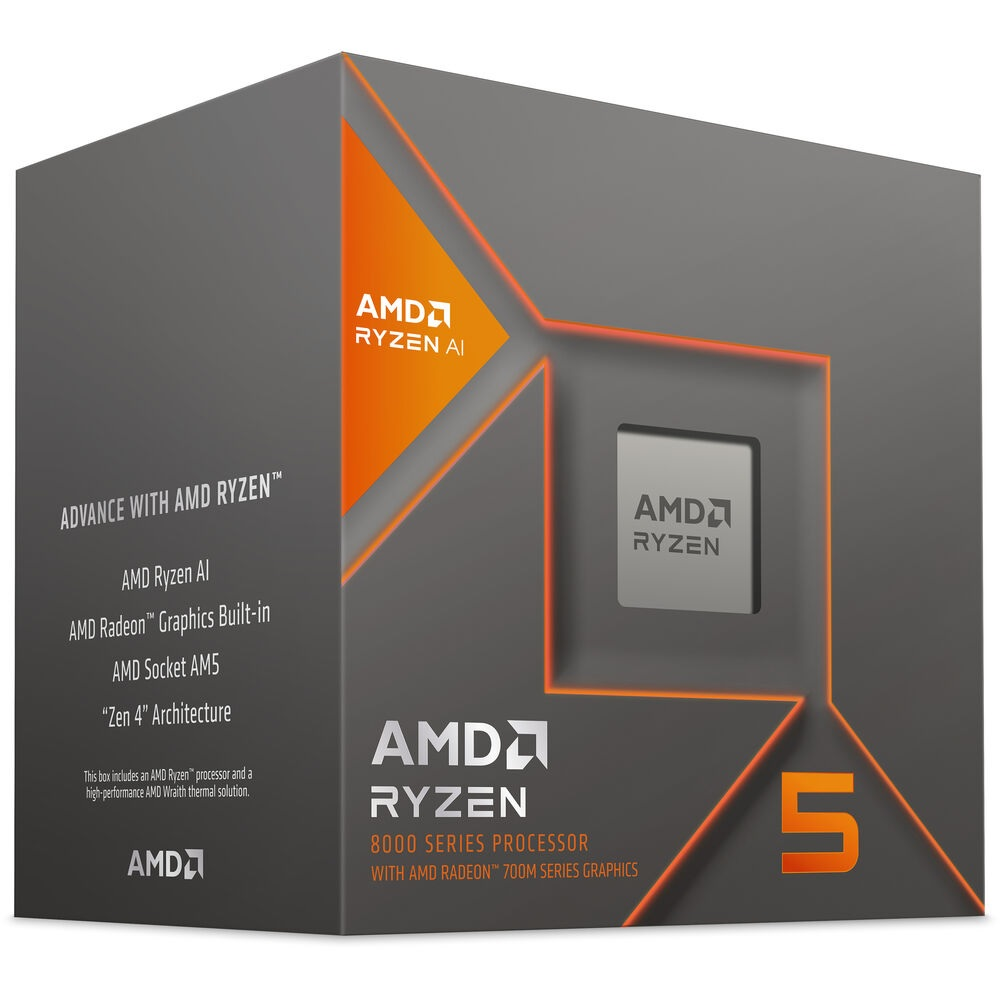

AMD Ryzen 5 8600G 6-Core AM5 Socket Desktop CPU Processor

• Name: AMD Ryzen™ 5 8600G
• CPU Socket: AM5
• Manufacturing Process: 4 nm
• Maximum CPU Configuration: 1S
• Maximum Number of PCIe Lanes: 20 (Revision 4.0)
• Unlocked: Yes

Performance

• Number of Cores: 6
• Number of Threads: 12
• Base Clock Speed: 4.3 GHz
• Maximum Boost Speed: 5.0 GHz
• L3 Cache: 16 MB

Memory Support

• Maximum Capacity: 256 GB
• Memory Type: DDR5 Up to 5200 MHz
• ECC Memory: Yes
• Channel Architecture: Dual Channel

Power

• Thermal Design Power (TDP): 65 W
• Included Thermal Solution: Wraith Stealth
• Maximum Temperature: 203°F / 95°C
• Thermal Monitoring Technologies: Yes

Technology

• AES Support: Yes
• Instruction Extensions: AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1, SSE 4.1/4.2
• Instruction Set: 64-Bit
• Virtualization: Yes
• Performance Technologies: AMD EXPO, AMD Ryzen AI, Precision Boost 2

Integrated Graphics

• GPU: AMD Radeon 760M
• Maximum Resolution Support: 7680 x 4320 at 60 Hz
• Supported APIs: DirectX 12
• Number of Displays: 4
• Output Support: DisplayPort, HDMI
• GPU Base Clock Speed: 2800 MHz
