ASUS ROG Strix Helios RGB GX601 Mid Tower Gaming Case
ASUS ROG Strix Helios RGB GX601 Mid Tower Gaming Case
Couldn't load pickup availability
![]() |
Made For Showcase Builds ROG Strix Helios is a premium mid-tower gaming case with three tempered-glass panels, refined aluminum frame and integrated front-panel RGB lighting. Built-in cable management, including a multifunction cover with GPU braces, keeps the interior sharp and tidy. Engineered for expandability and performance, it's ready for an up to EATX motherboard and serious water-cooling setups making it the perfect choice for a classic ROG showcase build. |
![]() |
Premium Design & Aesthetics ROG Strix Helios is made for showcase builds with three smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A stunning display of dynamic RGB lighting is integrated into the front panel to outshine the competition. |
![]() |
Aura Sync RGB Lighting Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, ROG Strix Helios can cast millions of colors and a range of effects that can be synchronized with a vast ecosystem of components to augment your build. |
![]() |
Easy Installation & Maintenance ROG Strix Helios is designed with multiple easy installation mechanisms to provide the smoothest building experience, even for DIY novices. Keeping your rig clean is made easy with built-in dust filters and easy access to all areas. |
![]() |
Versatile Graphics Card Mounting Fit up to three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket. |
![]() |
Ready For Serious Cooling Built to perform and primed for expansion, ROG Strix Helios can accommodate an up to EATX motherboard and offers ample space for hardcore water-cooling setups. With support for up to 420mm front and 360mm top radiators, room is also reserved for installing a water-cooling pump and reservoir. |
![]() |

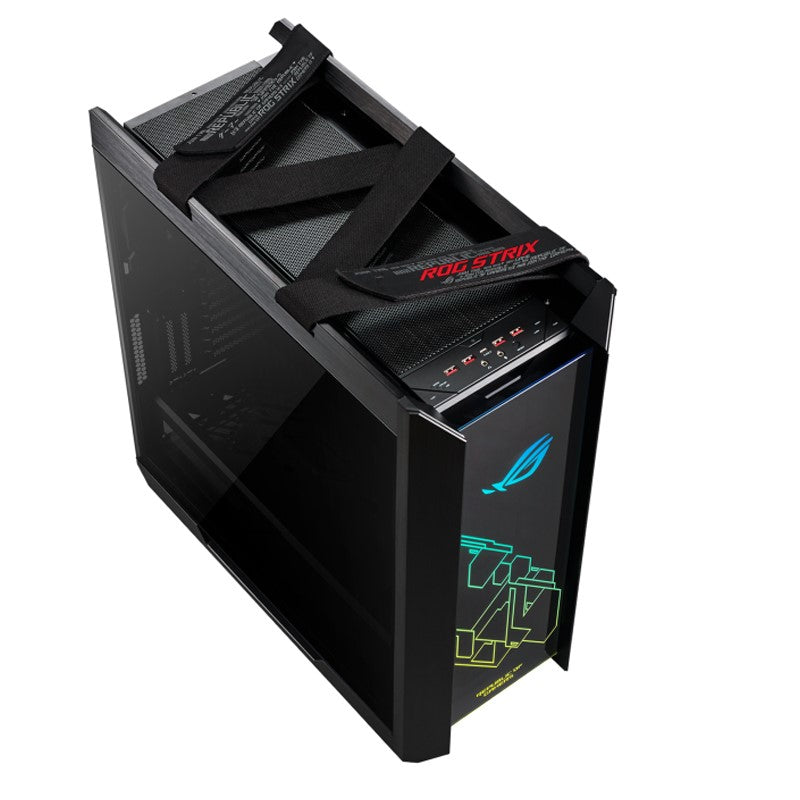

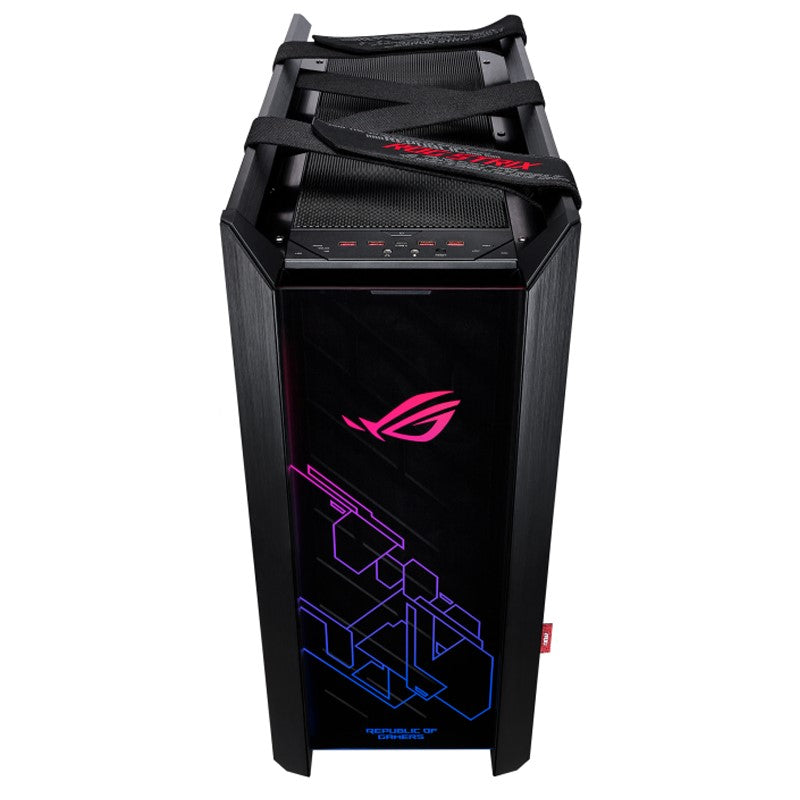

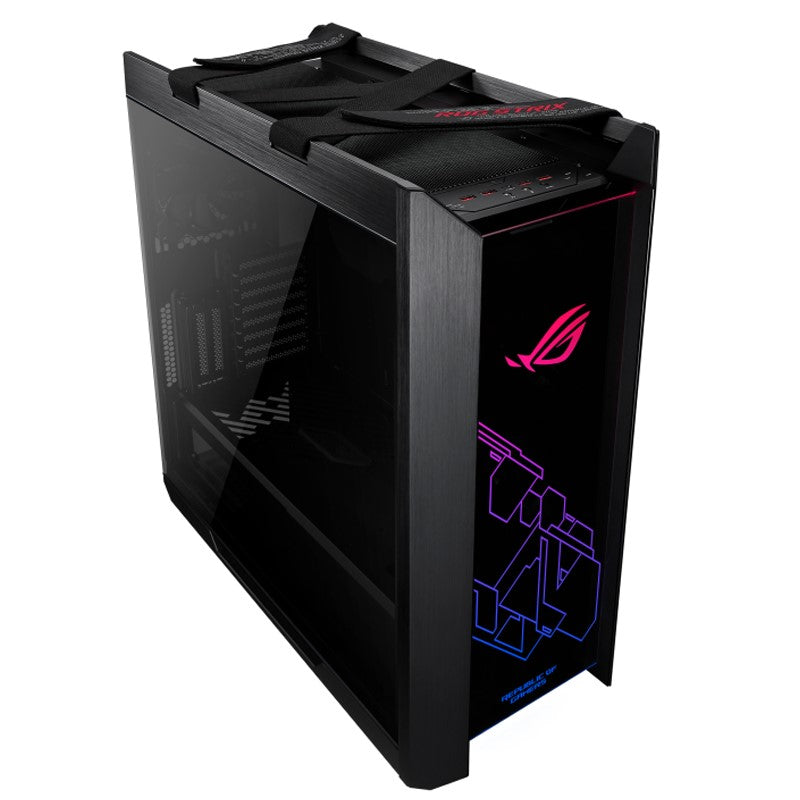

Comfortable Case Handles Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg. |
Specifications:
Case Size: ATX mid Tower
Form Factor: ATX/micro ATX/Mini ITX/EATX (12”x10.9”)
Drive Bays
2 x Int x 2.5”/3.5” Combo Bay
4 x Int x 2.5” Bay
System Fan Support
Pre-installed Fans
Front: 3 x 140mm
Rear: 1 x 140mm
Expansion Slots: 8+2 (additional vertical)
Weight: N.W. 18 kg
Front I/O Ports
1 x USB 3.1 Gen 2 (Type-C)
4 x USB 3.1 Gen 1
1 x Headphone
1 x Microphone
LED & Fan Control Buttons
Power Supply: ATX
Dimensions: 250 x 565 x 591 (WxDxH)
Note
Cooling Support
Front: 3 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 90mm)
Top: 2 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 60mm)
Rear: 1 x 140mm/120mm
Radiator Support
Front: 120, 140, 240, 280, 360, 420 mm
Top 120, 140, 240, 280, 360 mm
Rear: 120, 140mm
Maximum GPU Length: 450 mm
(Riser Cable above 200mm in length is required for one GPU install in vertical position)
Maximum CPU Cooler Height: 190 mm
Maximum PSU Length: 220 mm
Removable Dust Filters: Front: Slide-Out / Top: Slide-Out / Bottom: Slide-Out
Cable Routing: Max. 33 mm
3.5”/2.5” Drive Bays: Up to 4pcs (Pre-install 2pcs)
2.5” Drive Bays: Up to 9pcs (Pre-install 4+1pcs)
