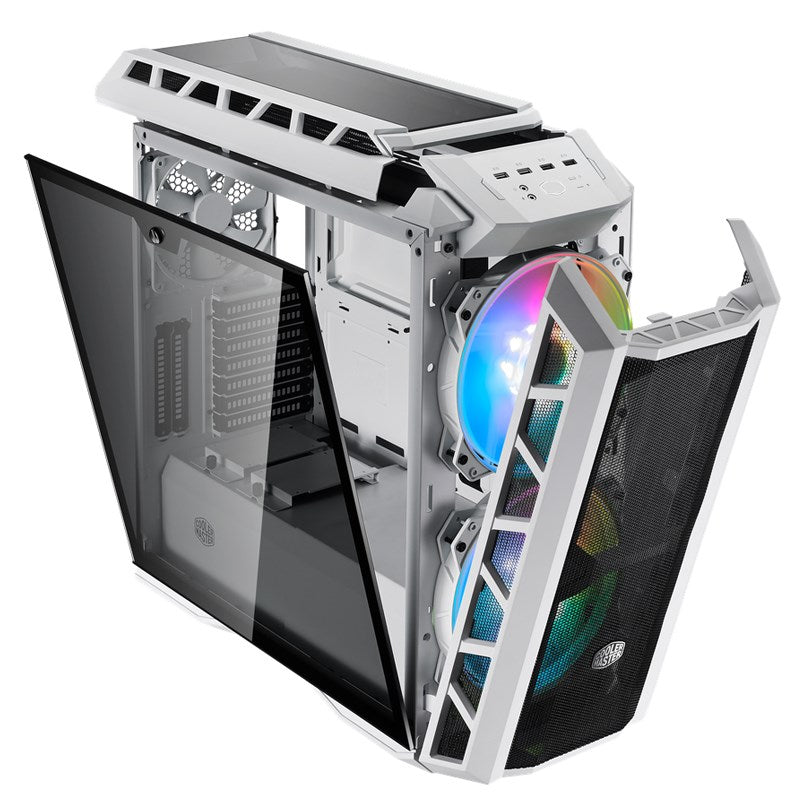

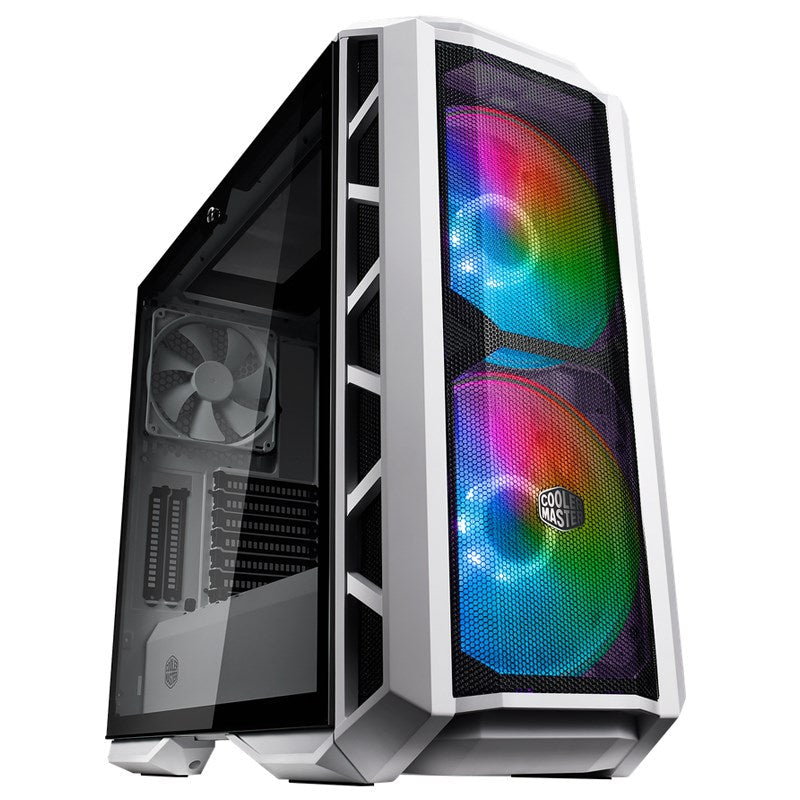

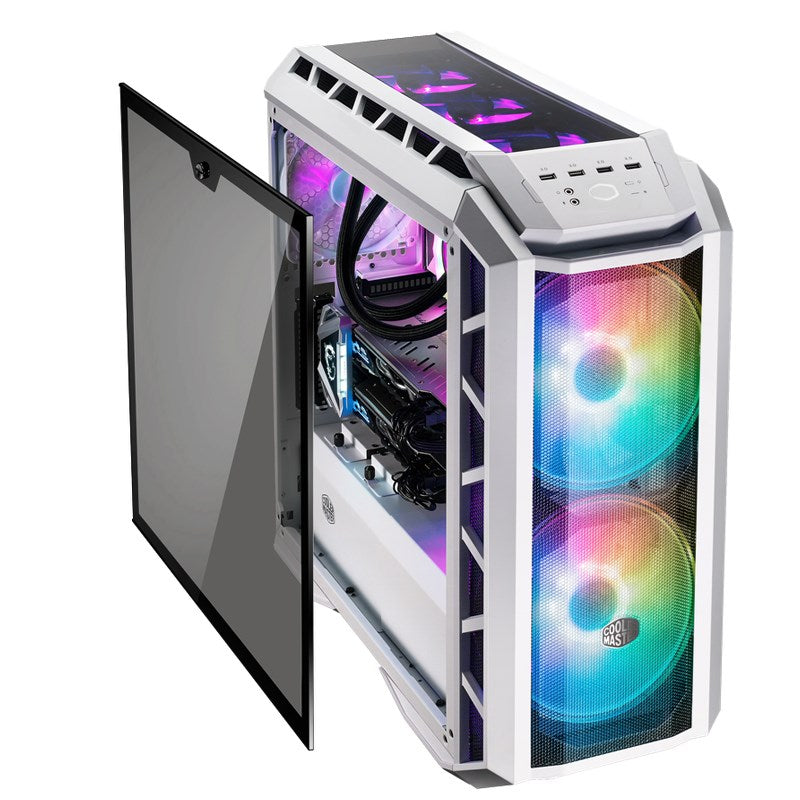

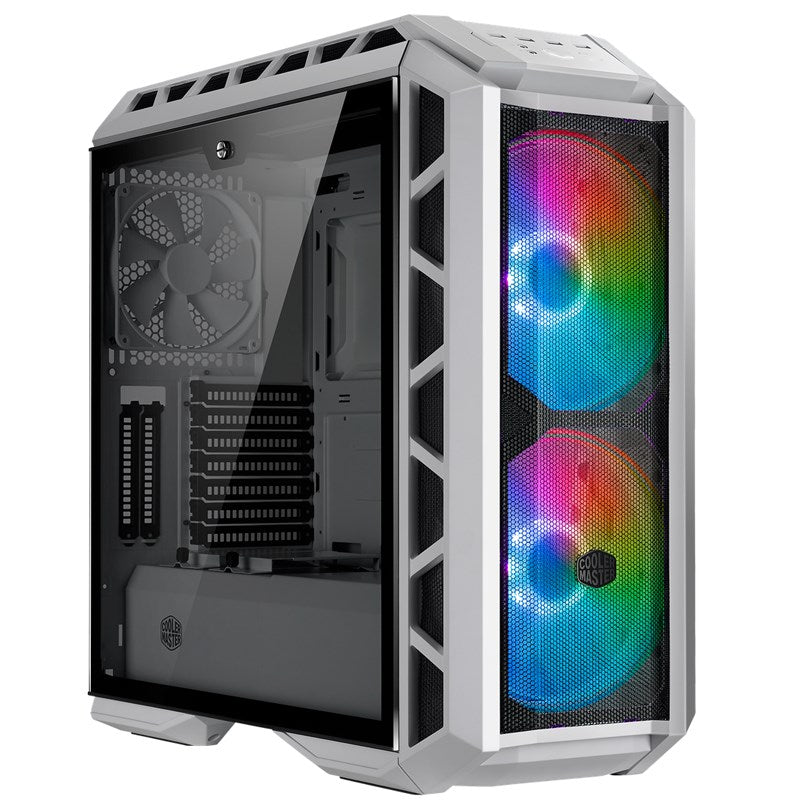

Cooler Master MasterCase H500P Mesh ARGB E-ATX Gaming PC Case - White (Dual 200mm ARGB Fan Included)

Cooler Master MCM-H500P-WGNN-S00 MasterCase Mesh White ATX

Dual 200MM ARGB Fans

The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size

Mesh Front Panel

Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.

Build By Design

Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter

ARGB Lighting System

The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

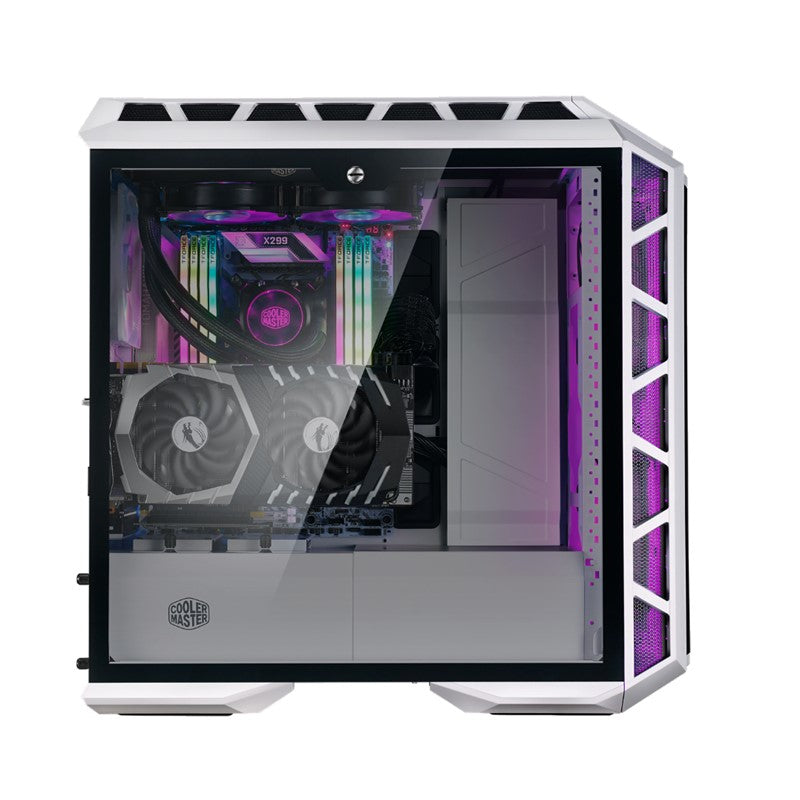

Tempered Glass Side Panel

Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Model Number

MCM-H500P-WGNN-S01

Series

MasterCase Series

Size

Mid Tower

Color(s)

White

Materials

Steel, Plastic, Tempered Glass, Mesh

Dimensions (L x W x H)

544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch

Weight

11.3 kg

Motherboard Support

Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)

Expansion Slots

7+2, (Supports vertical graphics card installation)

5.25" Drive Bays

N/A

2.5" / 3.5" Drive Bays (Combo)

2

2.5" Drive Bays

2 (Max.4)

I/O Panel

2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter

Pre-installed Fans - Front

2x 200mm ARGB Fan

Pre-installed Fans - Rear

1x 140mm, 1200RPM

Fan Support - Top

3x 120/140mm, 2x 200mm

Fan Support - Front

3x 120/140mm, 2x 200mm

Fan Support - Rear

1x 120/140mm

Radiator Support - Top

120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Front

120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Rear

140mm, 120mm

Clearance - CPU Cooler

190mm

Clearance - PSU

220mm

Clearance - GFX

412mm/16.2"

Dust Filters

Top, Front, Bottom

Power Supply Support

Bottom Mount, ATX
