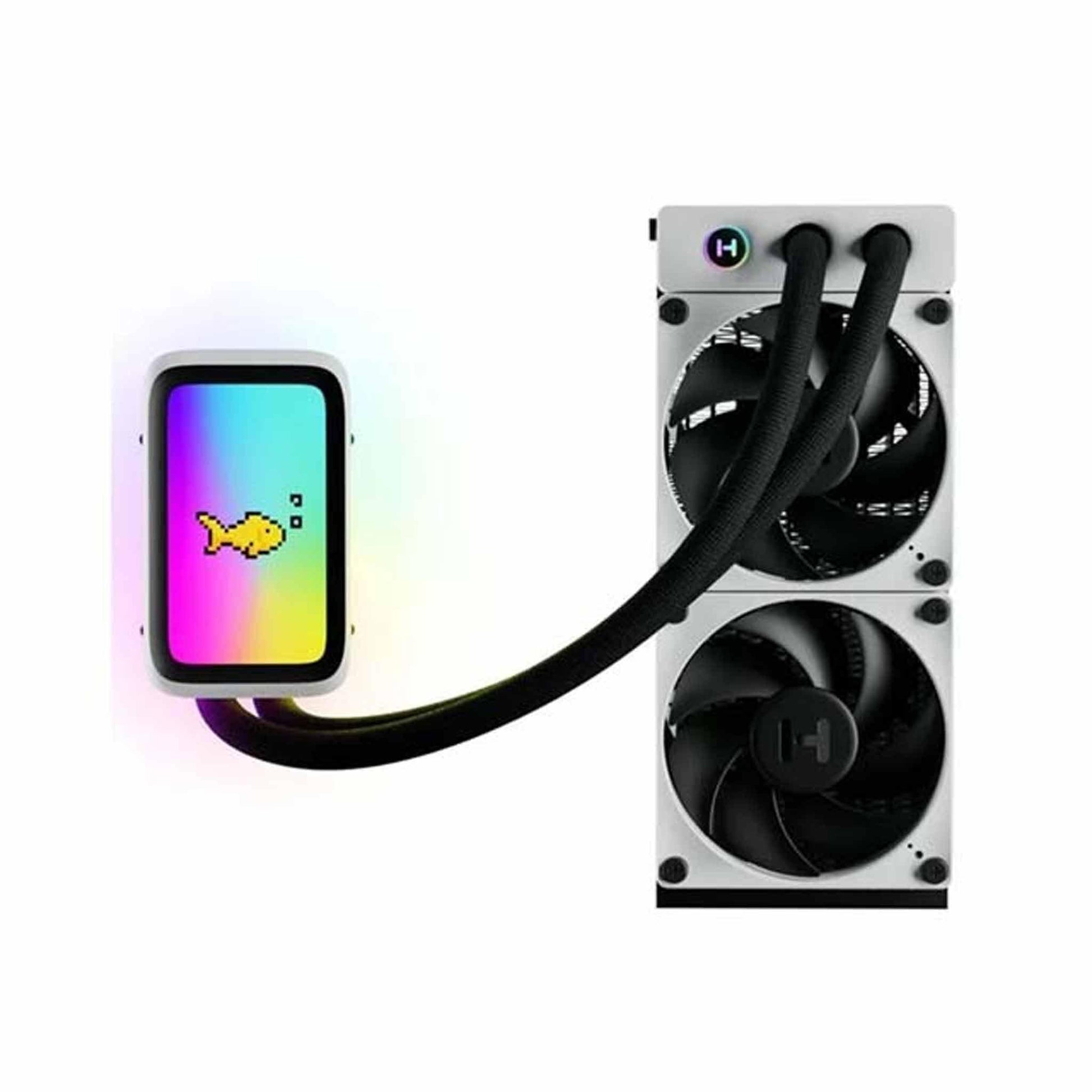

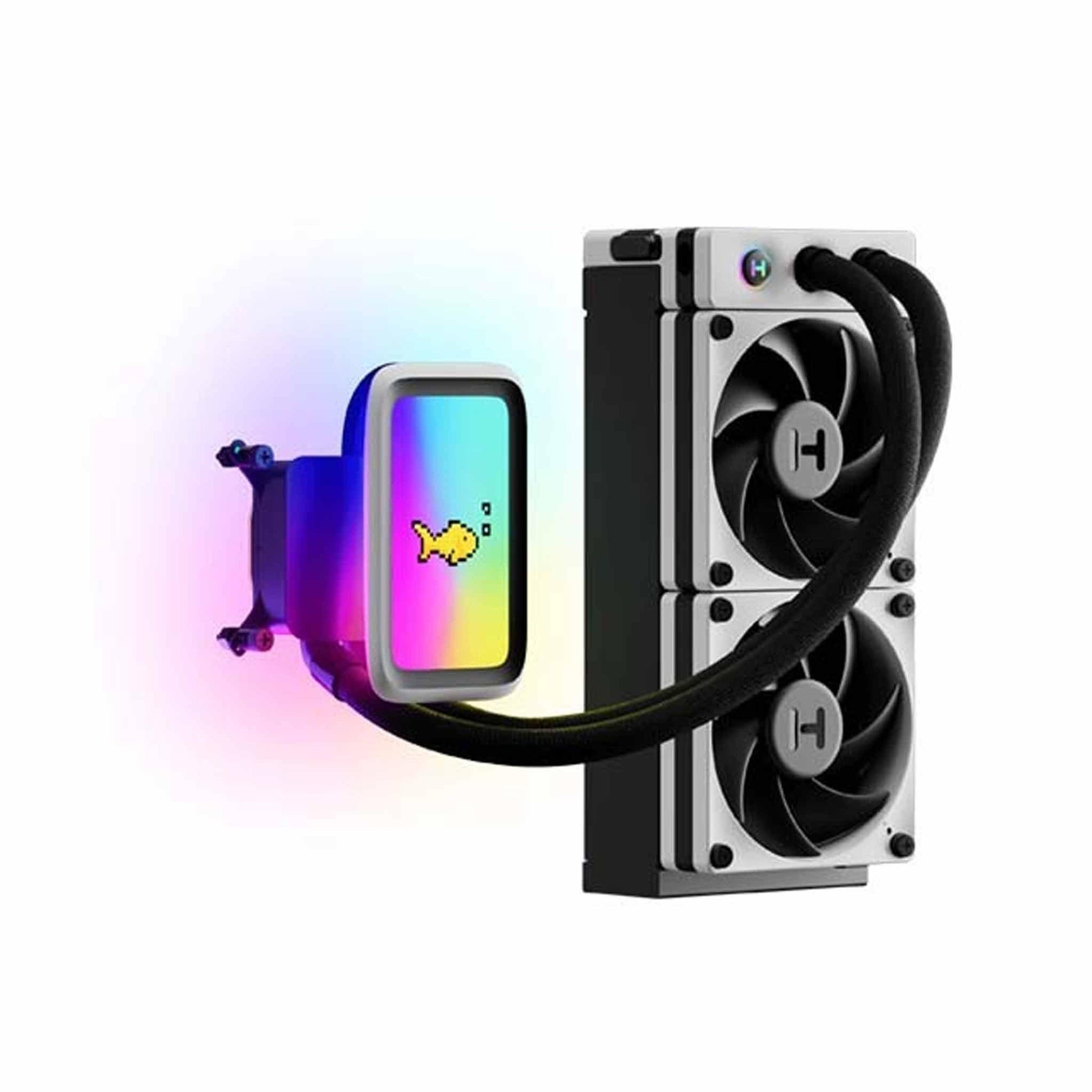

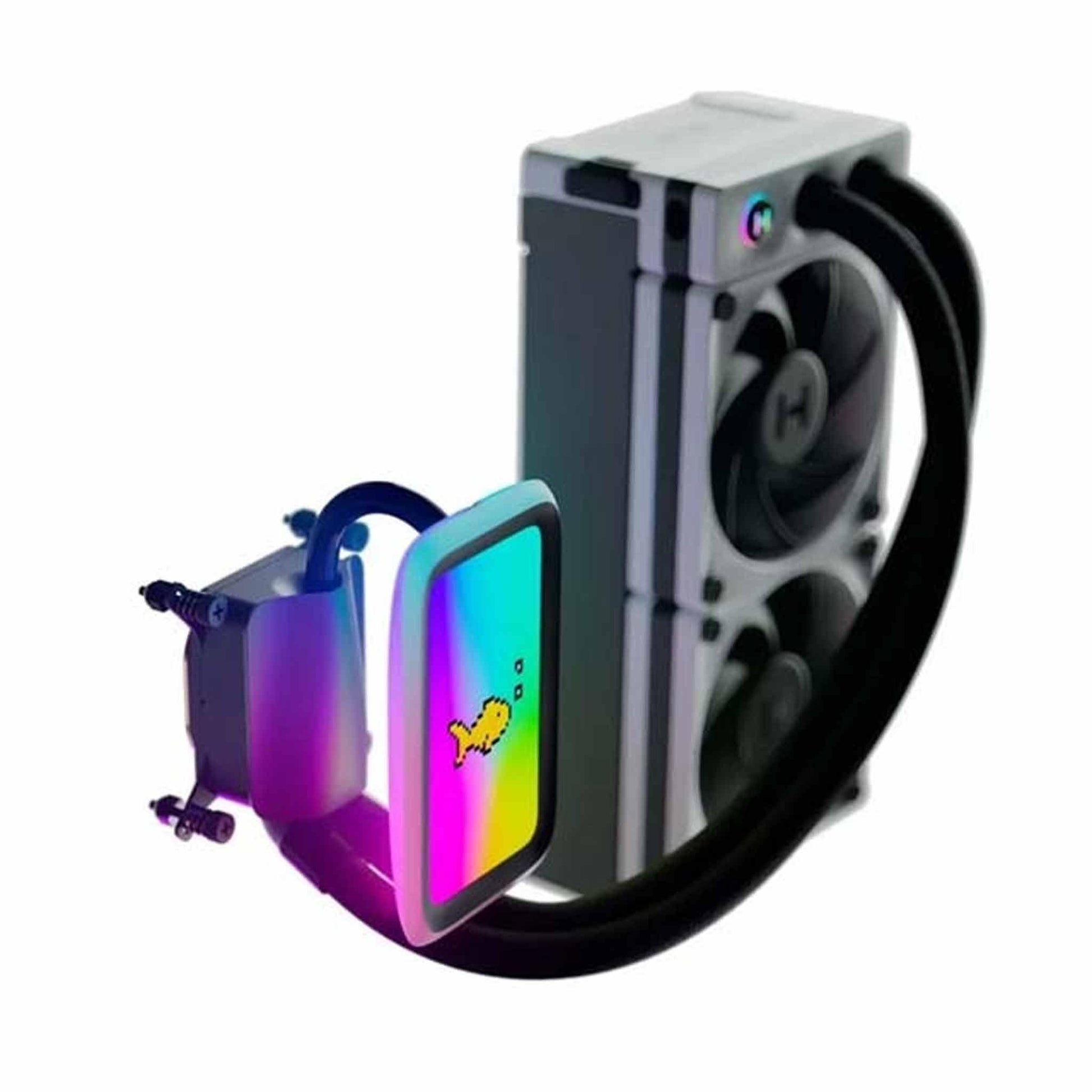

HYTE Thicc Q60 - 5 Inch Ultraslim HD Display 240mm CPU Liquid Cooler - Black/White

109.890 KWD

~~0.000 KWD~~ 109.890 KWD

Sale Sold out

Quantity

Weight : 5.1 lbs
CPU Compatibility : Intel Socket LGA 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support
Heat Exchanger Dimensions : 120 x 288 x 52 mm
Heat Exchanger Material : Aluminum
Heat Exchanger Technology : Parallel Dual Pass
Cold Plate Dimensions : 56 x 56 x 1.5 mm
Cold Plate Material : Copper
Cold Plate Technology : Micro-Skived Fin
Magnetic Interchangeable Cold Plate Cover : Anodized Aluminum
Tube Length : 400 mm
Tube Material : CIIR Rubber with Nylon Sleeving
Total CPU Block + LCD Screen Height : 105 mm
Fans : THICC FP12 x 2
Fan Dimensions : 120 x 120 x 32 mm
Fan Speed : 0 – 3,000 RPM
Air Flow : 105.8 CFM
Static Pressure : 8.14 mm-H2O
Noise Level : <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
Bearings : Fluid Dynamic Bearing
Fan Blade Material : Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Frame Material : Polycarbonate
Fan Connector : Nexus Link Type-M
Nexus-Link Channels : 1x Type-C, 1x Type-M
Maximum Devices – Single Channel : 18
Maximum Devices – All Channels : 34
Maximum Current – Single Channel : 8A/12V
Maximum Current – All Channels : 15A/12V
Maximum PSU Power Draw : Up to 180W depending on the number of connected Nexus Link devices
LCD Size : 5 Inches
LCD Mounting Orientation : Portrait Only
LCD Resolution : 720 x 1280 (293 PPI)
LCD Panel Type : IPS
LCD Hinge : Double-Hinged Floating Spout
LCD Refresh Rate : 60 Hz
LCD Brightness : 300 nits
Bias Lighting : 42-Pixel qRGB Array
Logo Lighting : 4-Pixel qRGB Array
Pump RPM : 2,000 – 4,500 RPM
Pump Bearing : Ceramic
Pump Impeller Diameter : 24 mm
Coolant Operation Temperatures : -10 to 60 C
Processor : Quad-Core 64-bit ARM Cortex
Speed : 1.3 GHz
RAM : 2GB DDR4 @2666 MT/s
Storage : 32GB eMMC
Graphics Engine : 500 MHz
Co-Processor : 32-Bit ARM Cortex-M4
Input Connections : USB 2.0 Header, PWM, 6-Pin PCIe Power
Included Accessories : Intel Mounting Kit + AMD Mounting Kit + Fan Screws
Thermal Paste : Yes, Pre-Applied
Nexus Powered : Yes
Sku : FAN-HYTE-Q60-BW
