Model Name
|

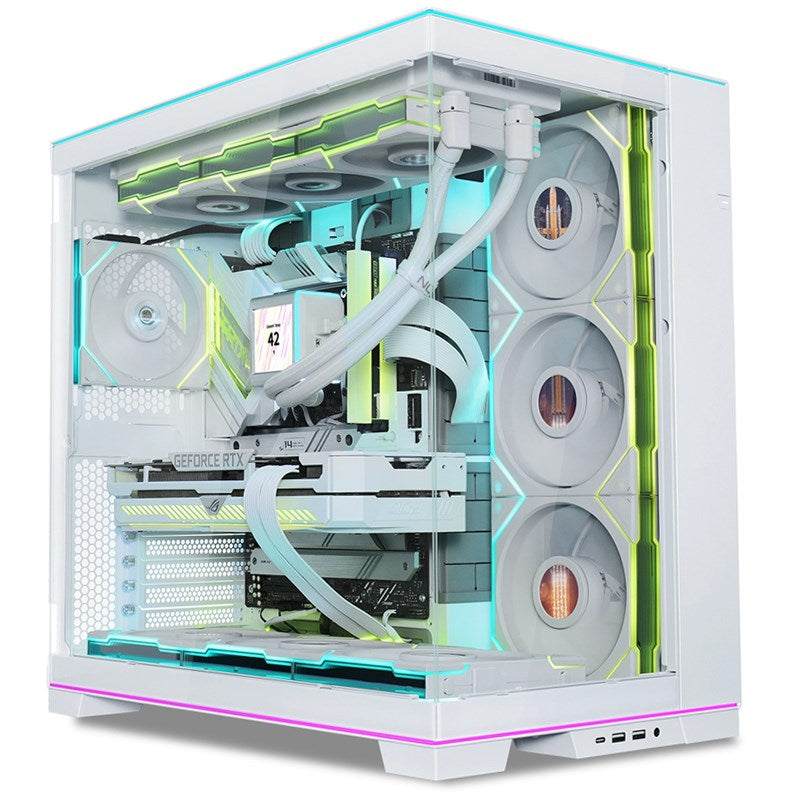

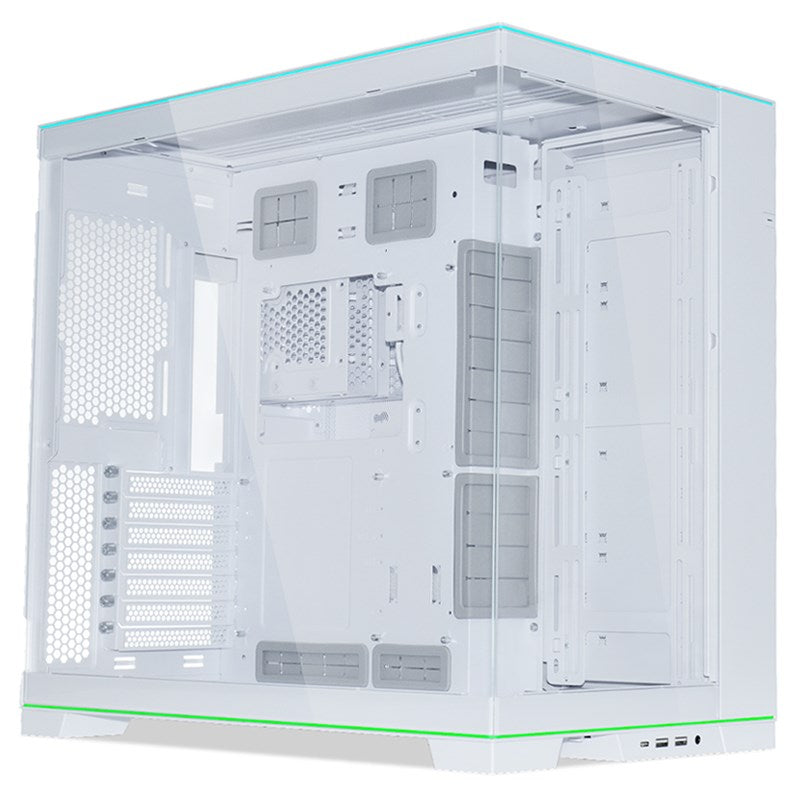

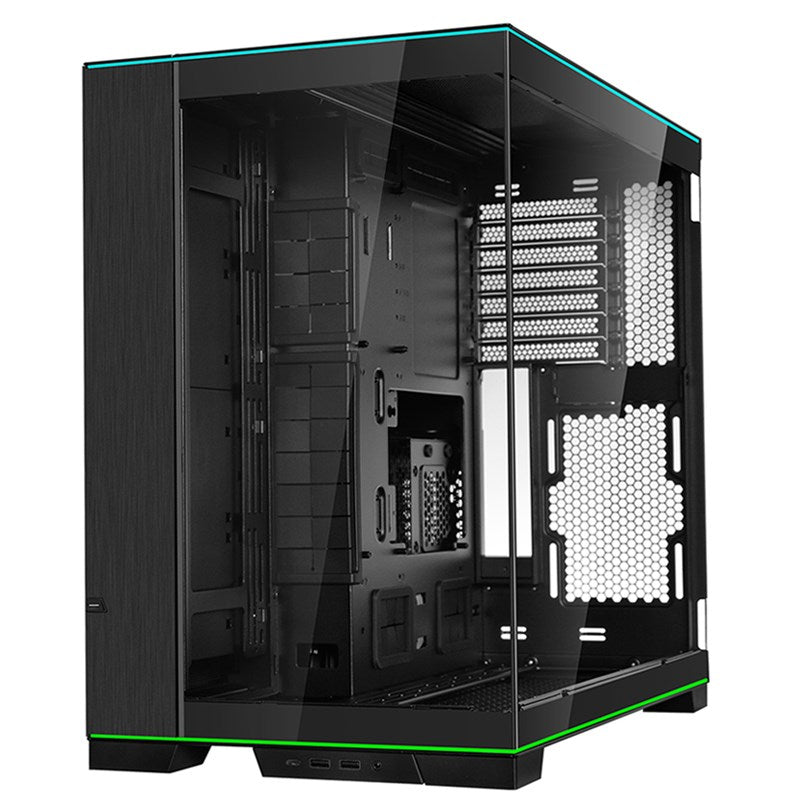

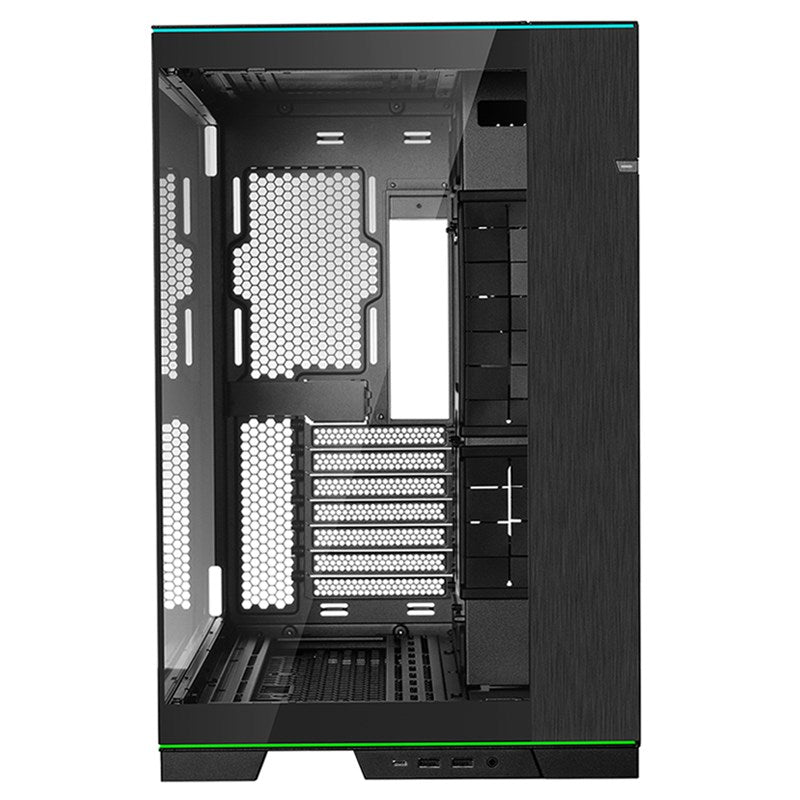

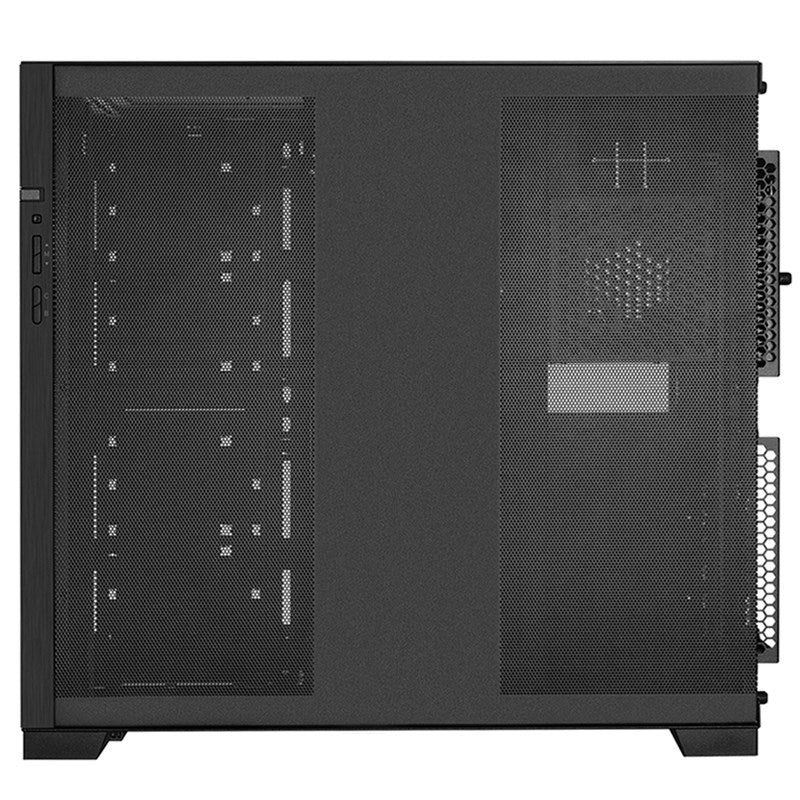

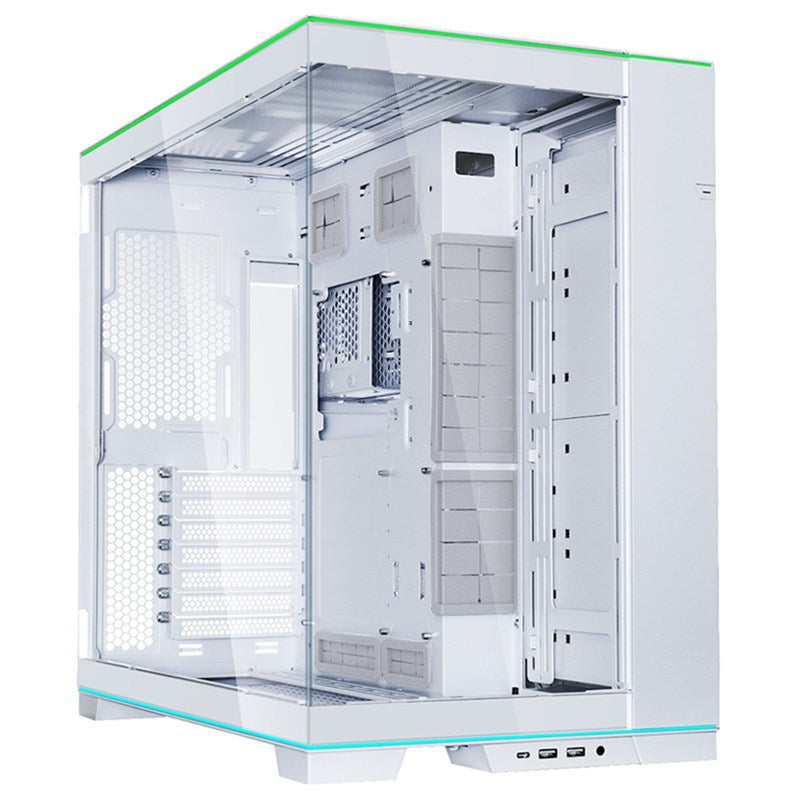

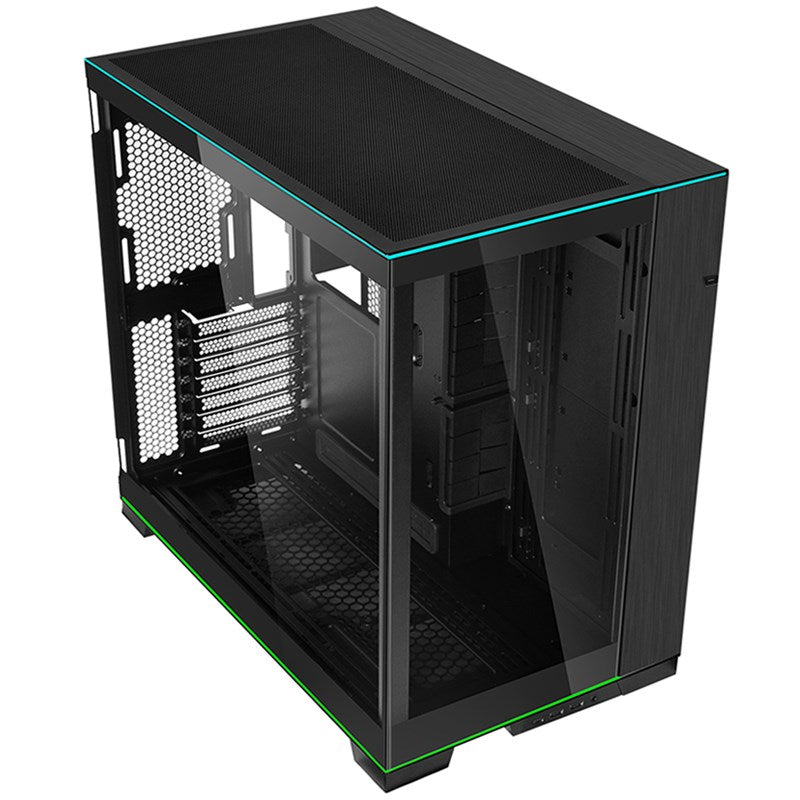

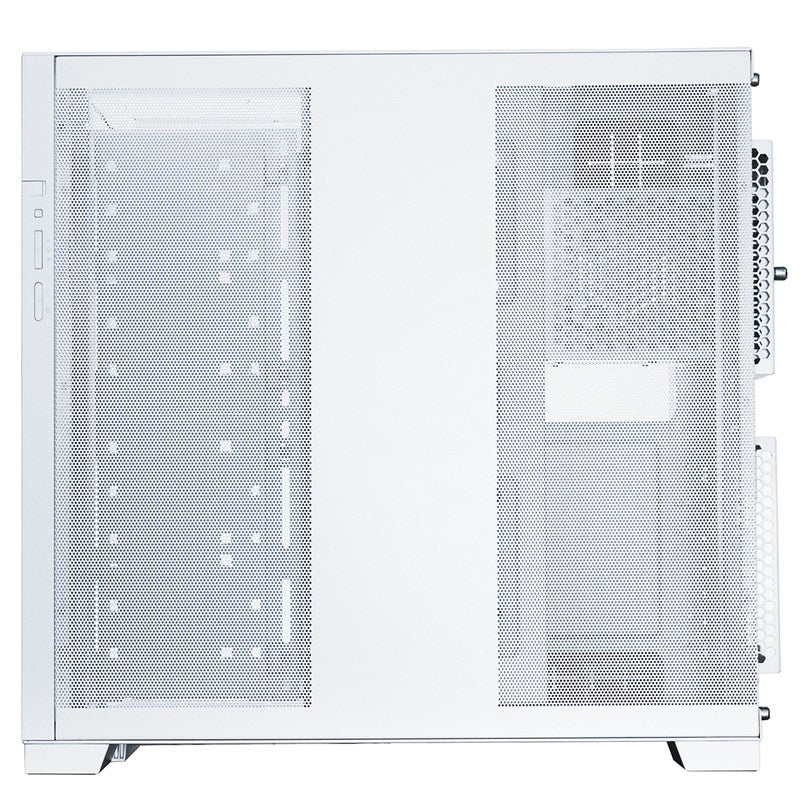

O11 DYNAMIC EVO RGB
|
Case Type
|
Tower Chassis
|
Dimensions
|
478mm*290mm*471mm (D*W*H)
|
Material
|
4.0mm tempered glass、Aluminum 、Steel
|
Motherboard Support
|
E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX
|
Expansion Slot
|
7
|
Storage
|
Side Fan Bracket:2 * 3.5″ HDD or 4 * 2.5″ SSD
|
|
Behind MB Tray: 2 * 2.5″ SSD
|
|
Hard Drive Cage：2 * 3.5″ HDD or 2.5″ SSD
|
Radiator Support
|
Top: 240mm * 1 or 360mm * 1 or 420mm * 1
|
|
Side: 240mm * 1 or 280mm * 1 or 360mm * 1
|
|
Bottom: 240mm * 1 or 280mm * 1 or 360mm * 1
|
Fan Support
|
Top: 120mm * 3 or 140mm * 3
|
|
Side: 120mm * 3 or 140mm * 3
|
|
Bottom: 120mm * 3 or 140mm * 3
|
|
Rear: 120mm * 1
|
GPU Length Clearance
|
455.7mm（Max）
|
CPU Cooler Height Clearance
|
167mm（MAX）
|
PSU Support
|
ATX (Under 220mm)
|
I/O Ports
|
USB 3.0 * 2
|
|
USB 3.1 TYPE-C * 1
|
|
Audio * 1
|
|
Color Button * 1
|
|
Mode Button *
|
|
Brightness Button * 1
|
|
Reset Button * 1
|
|
Power Button * 1
|
Dust Filter
|
1 * Bottom
|
