Product Name
|

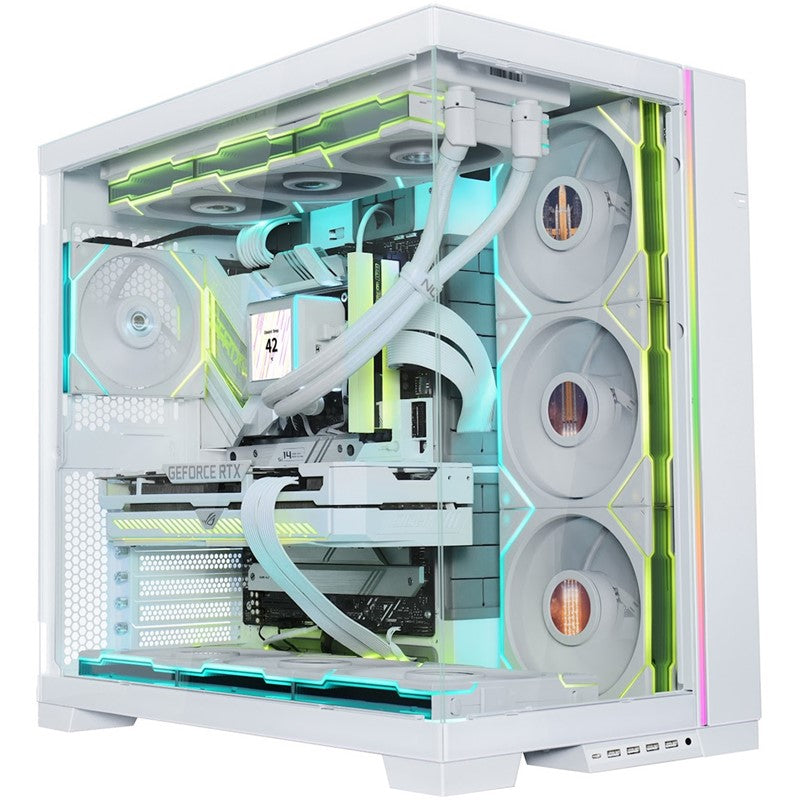

O11 Dynamic EVO XL
|
Case Type
|
Tower Chassis
|
Dimensions
|
(D) 522mm x (W) 304mm x (H) 531.9mm
|
Material
|
Steel
|
|
4.0mm Tempered Glass
|
|
Aluminum
|
Motherboard Support
|
E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
|
Expansion Slot
|
8
|
Storage
|
Behind MB Tray: 3 x 2.5” SSD
|
|
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
|
GPU Length Clearance
|
460mm (Max.)
|
CPU Cooler Height Clearance
|
167mm (Max.)
|
PSU
|
ATX (Under 220mm)
|
Fan Support
|
Top: 3 x 120mm / 3 x 140mm
|
|
Side: 3 x 120mm / 3 x 140mm
|
|
Bottom: 3 x 120mm / 3 x 140mm
|
|
Rear: Up to 2x 120mm
|
Radiator Support
|
Top: 360 / 420 / 240 / 280mm
|
|
Side: 360 / 420 / 240 / 280mm
|
|
Bottom: 360 / 420 / 240 / 280mm
|
I/O Ports
|
1 x Power Button
|
|
1 x Reset Button
|
|
4 x USB 3.0
|
|
1 x USB Type C
|
|
1 x Audio
|
|
1 x LED Color Button
|
|
1 x LED Mode Button
|
Dust Filters
|
1 x Bottom
|
|
1 x Top
|
|
2 x Side
|
