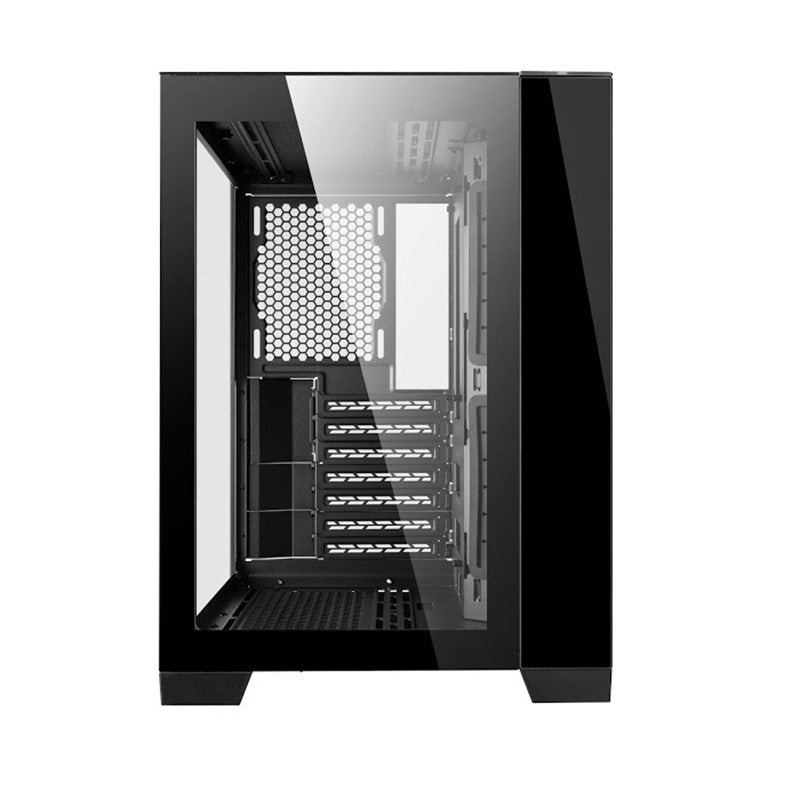

LIAN LI O11 Dynamic-Mini MID Tower Case
LIAN LI O11 Dynamic-Mini MID Tower Case
Couldn't load pickup availability
LIAN LI O11-Dynamic-Mini MID Tower Gaming Case - Snow
|
Side Radiator Configuration With Long GPU The 30mm Space Behind The Side Fan / Radiator Bracket Allows Users To Mount Fans, Thus Efficiently Intake Fresh Air To Directly Cool The Radiator And Leaves Enough Space To Install Long GPUS In This Compact Case.
Configuration Of Your Choice Decide How Many Expansion Slots You Need. Calculate The Size Of Your Fans & Accessories. Pick Your Motherboard Type. 3 Kinds Of Back Panels To Meet Your Demand.
Modular Pump Stand Friendly To Custom Water-Cooling Users, The Three Different Pump Stands Included Can Accommodate Different Scenarios.

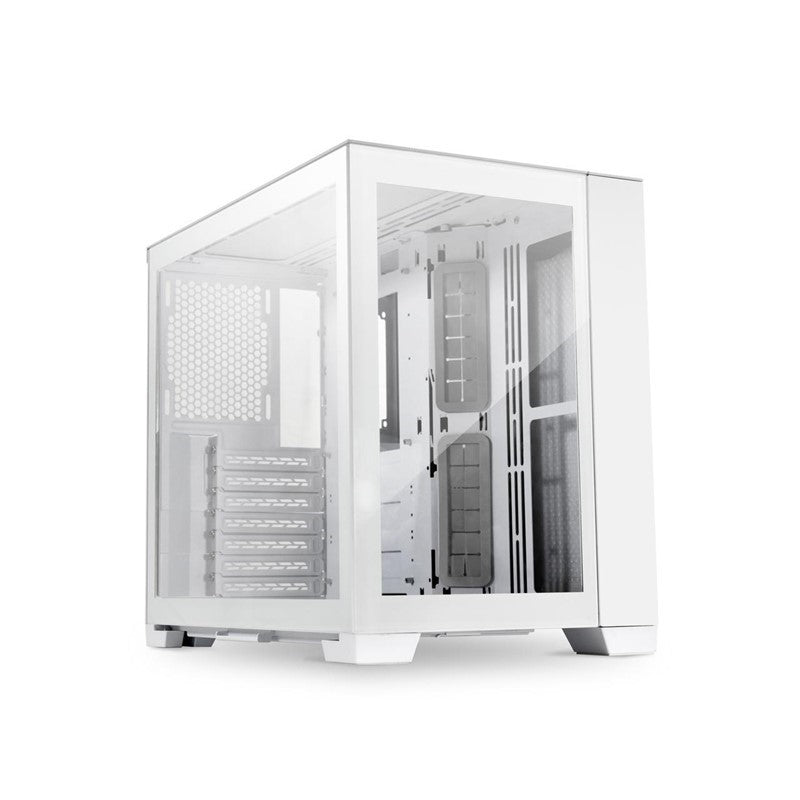

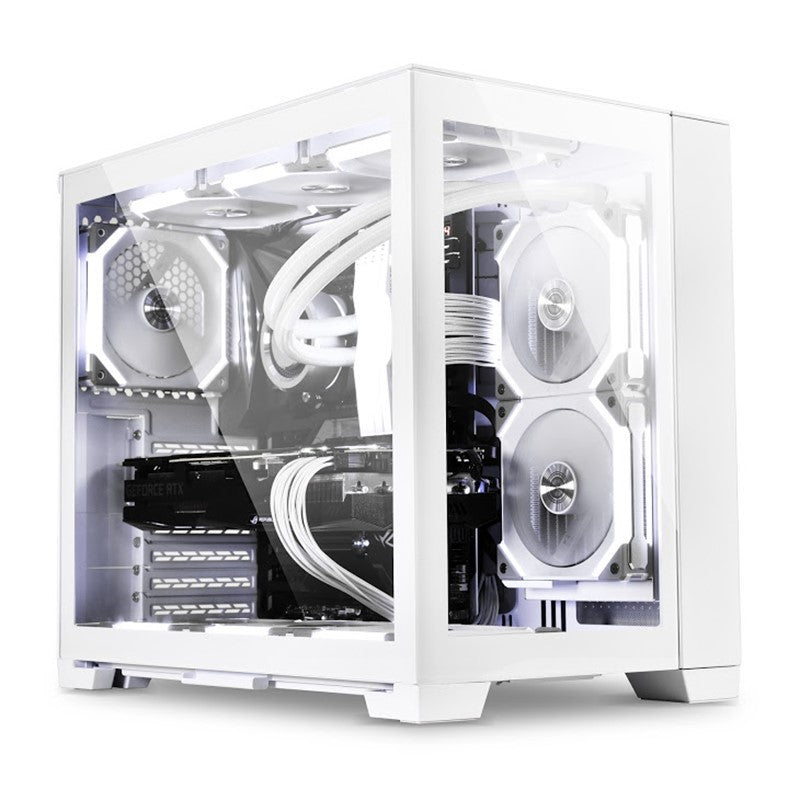

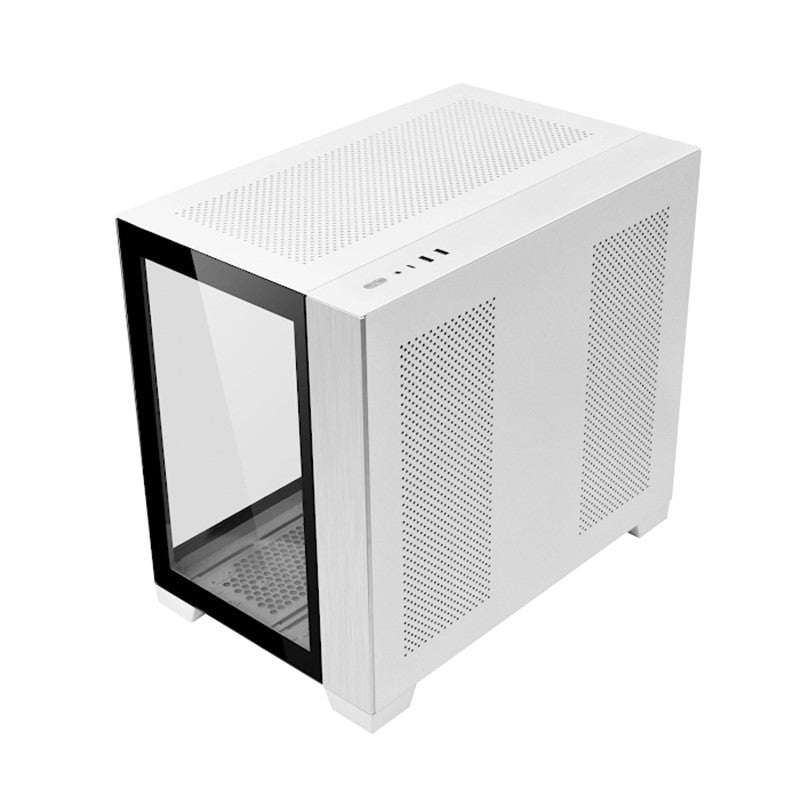

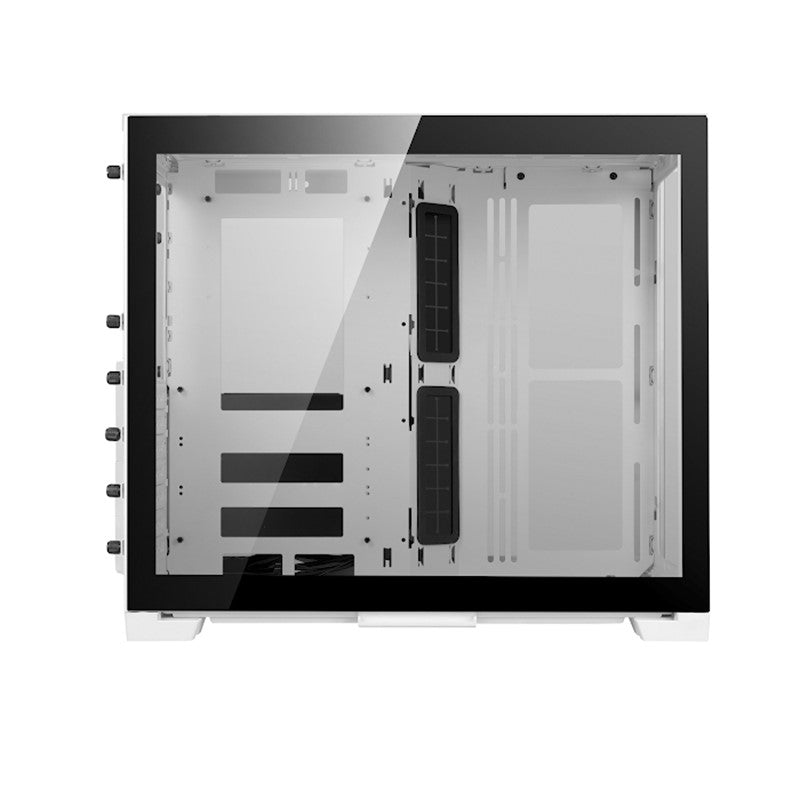

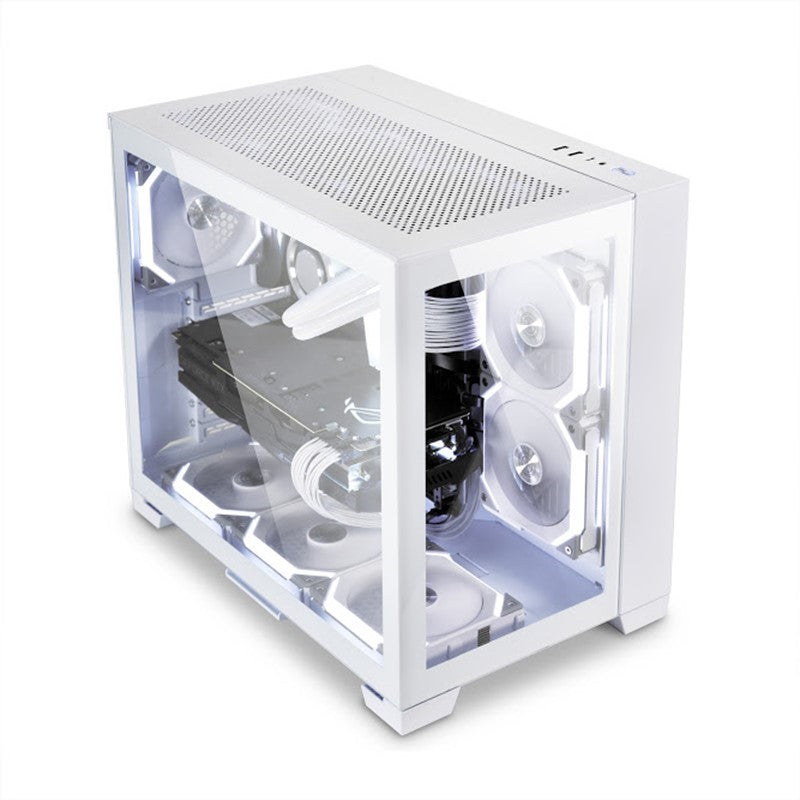

O11D Mini Snow Edition Fully White Version That Isn’t Missing Any Invisible Details.
As A Member Of The O11 Family The O11d Mini Is Designed To Support A Maximum Number Of Radiators To Optimize The Water-Cooling Potential, And This Even With A Smaller Frame.
Dual-Chamber Design For Cable Management Carried From The Design Of The O11D Series, Cables Quickly Pass To The Second Chamber Through Rubber Grommets. Multiple Tie Points And Velcro Strap Channels Are Provided To Tidy Up The Cables While The SSD Mounting Bar Helps Keep The Loose Cables All Snuggled Up To Ensure A Clean Look And Prevent The Right-Side Panel From Not Closing Or Bulging.
Complete Dust Protection All 3 Ventilation Intake Sides Are Equipped With Magnetic Dust Filters And A Removable Dust Tray To Prevent The Dust From Entering The Case.
|
Specification:
| DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm |
| MOTHERBOARD | ATX/ Micro-ATX/ Mini-ITX |
| PSU | SFX/ SFX-L |
| MATERIAL | Steel |
|
| 4 mm Tempered Glass |
|
| 2mm Aluminum (top and left panel) |
| FAN SUPPORT | Top: 3x 120mm or 2x 140mm |
|
| Side: 2x 120mm or 2x 140mm |
|
| Bottom: 3x 120mm or 2x 140mm |
|
| Rear: 1x 120mm |
| RADIATOR SUPPORT | Top: 360mm or 280mm or 240mm radiator |
|
| Side: 240mm or 280mm radiator |
|
| Bottom: 360 or 280mm or 240mm radiator |
| GPU LENGTH CLEARANCE | 395mm |
| CPU COOLER HEIGHT CLEARANCE | 170mm |
| VGA Length | 370mm |
| DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) |
| EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) |
| IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button |
| DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side |
