Product Name
|

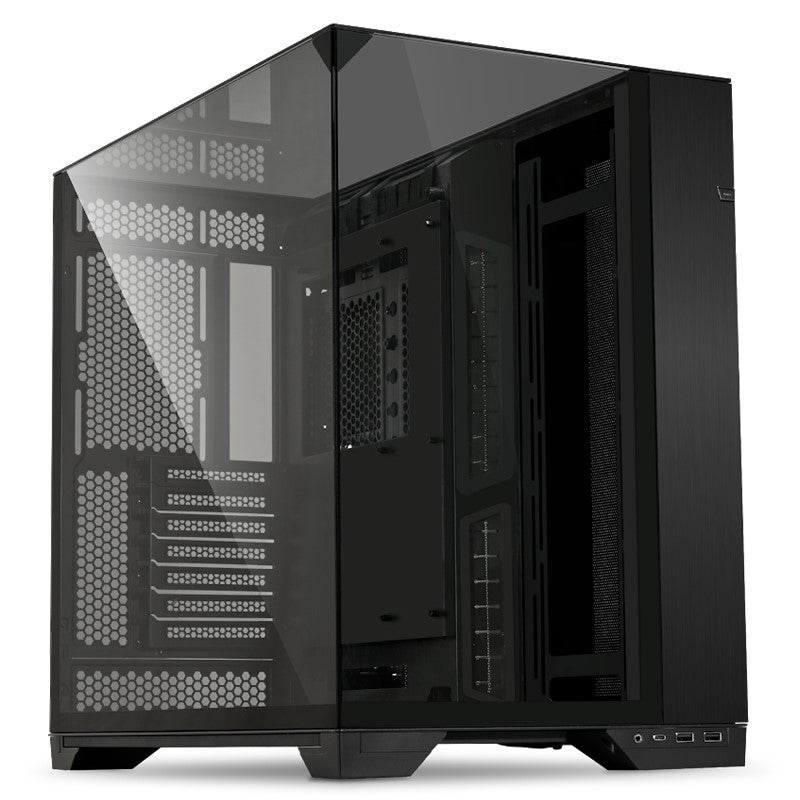

O11 Vision
|
Case Type
|
Tower Chassis
|
Dimension
|
(D) 480mm x ( W ) 304mm x (H) 464.5mm
|
Material
|
Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum
|
Motherboard Support
|
E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
|

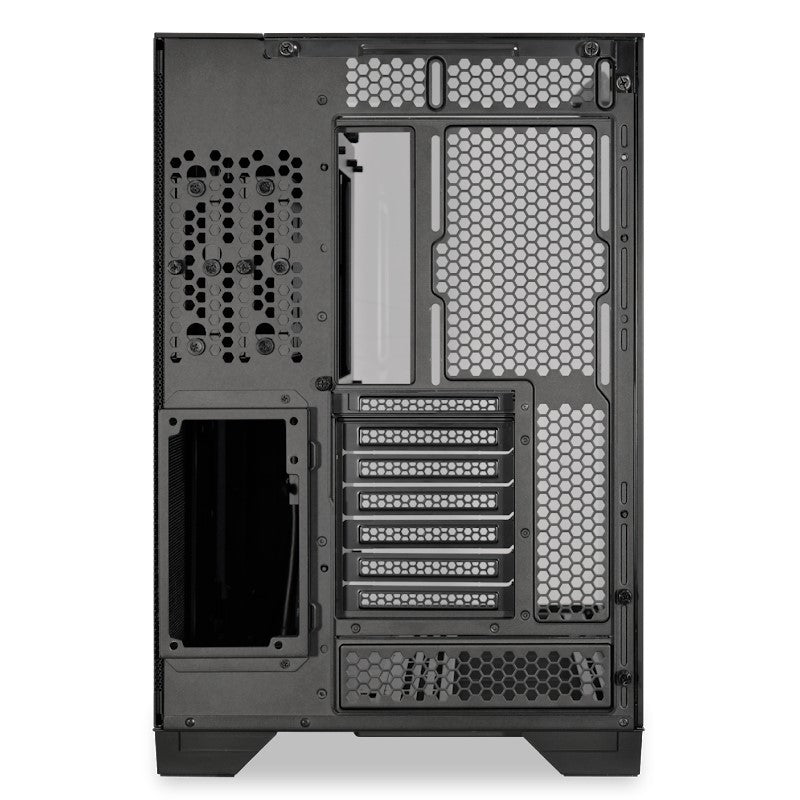

Expansion Slot
|
6+1
|
Storage
|

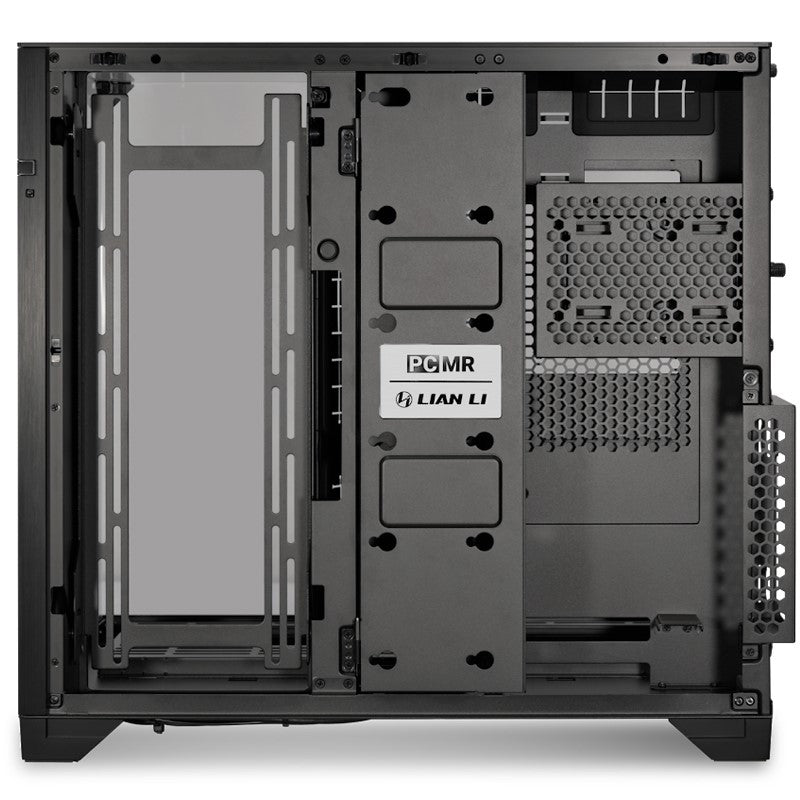

Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD
|
GPU Length Clearance
|
455mm (Max.)
|
CPU Cooler Height Clearance
|
167mm (Max.)
|
PSU Support
|
ATX (Under 220mm)
|
Fan Support
|
Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm
|
Radiator Support
|
Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm
|
I/O Ports
|
1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio
|
Dust Filter
|
Bottom × 1
|
