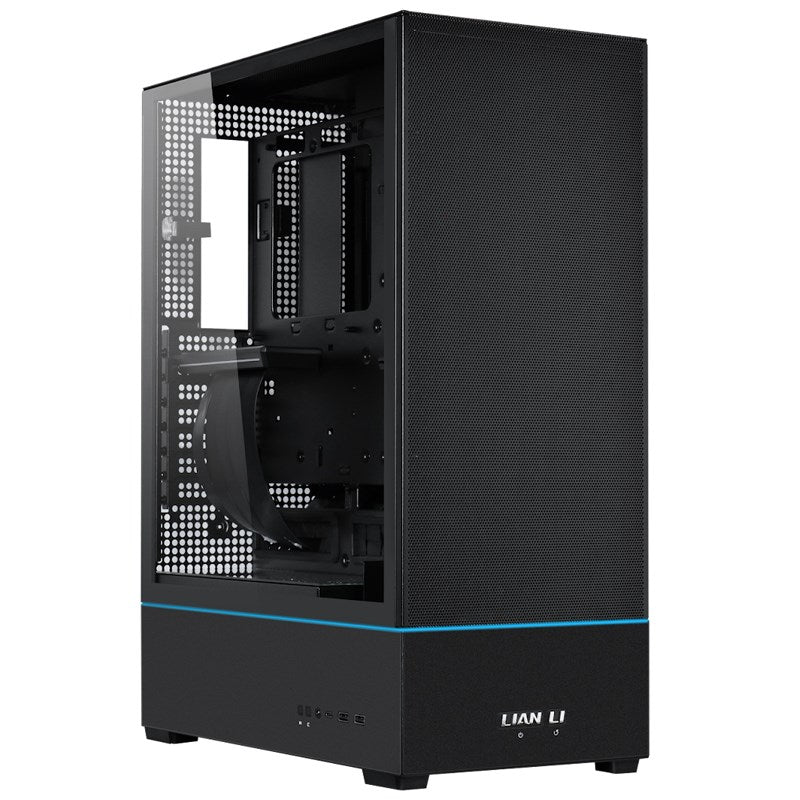

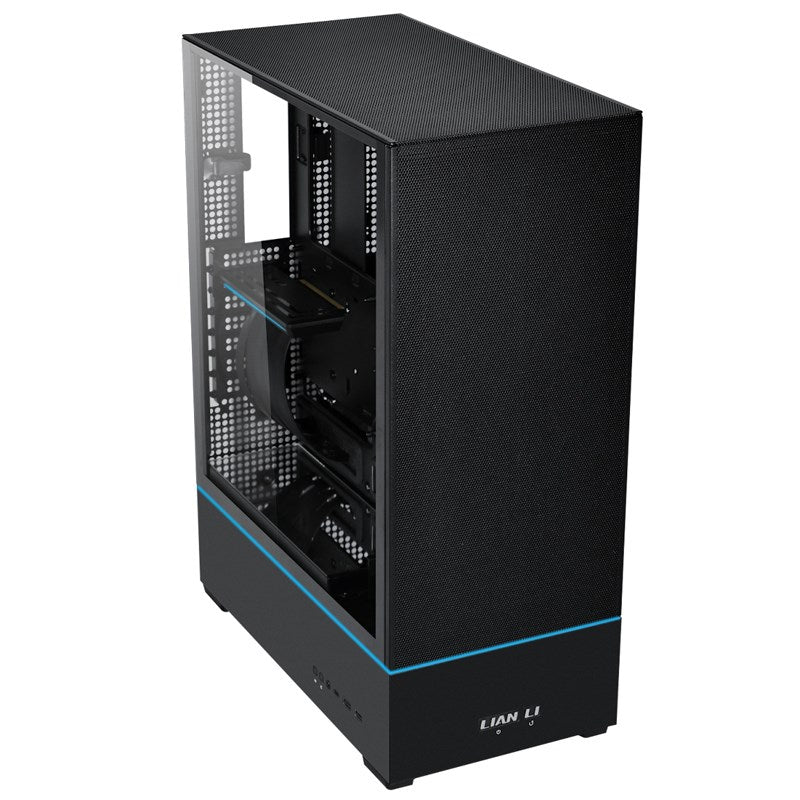

LIAN LI SUP01X Gaming Case

LIAN LI SUP01 ATX Mini Tower Gaming PC Case (3 PWM Fans Included)

SUP0I

Compact Power, Redefined Layout

Optimize your desktop with the LIAN LI SUP01, the stand-up platform design not only minimizes footprint but also ensures impeccable hardware compatibility and superior cooling efficiency.

Vertical Design with Compact Layout

The SUP01 features an innovative “stand-up platform” design, significantly reducing desktop footprint compared to traditional tower cases.

Despite its compact 45L size, it maximizes hardware compatibility with a well-thought-out layout, delivering exceptional cooling performance.

Independent Chambered Direct Cooling

Differing from traditional cases, the SUP01 offers independent intake and exhaust for all core components.

Direct Cooling for GPU

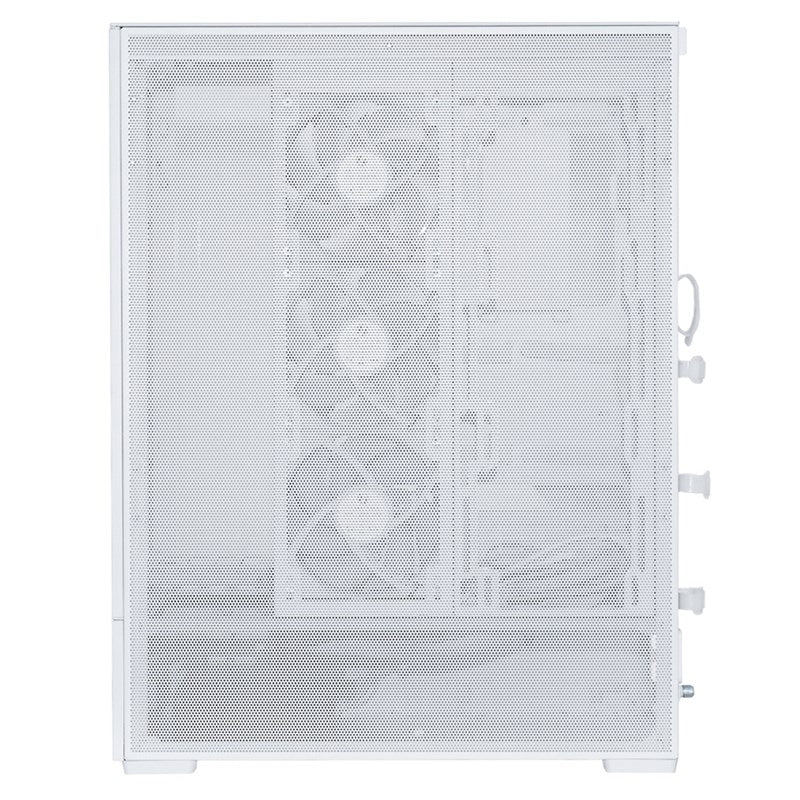

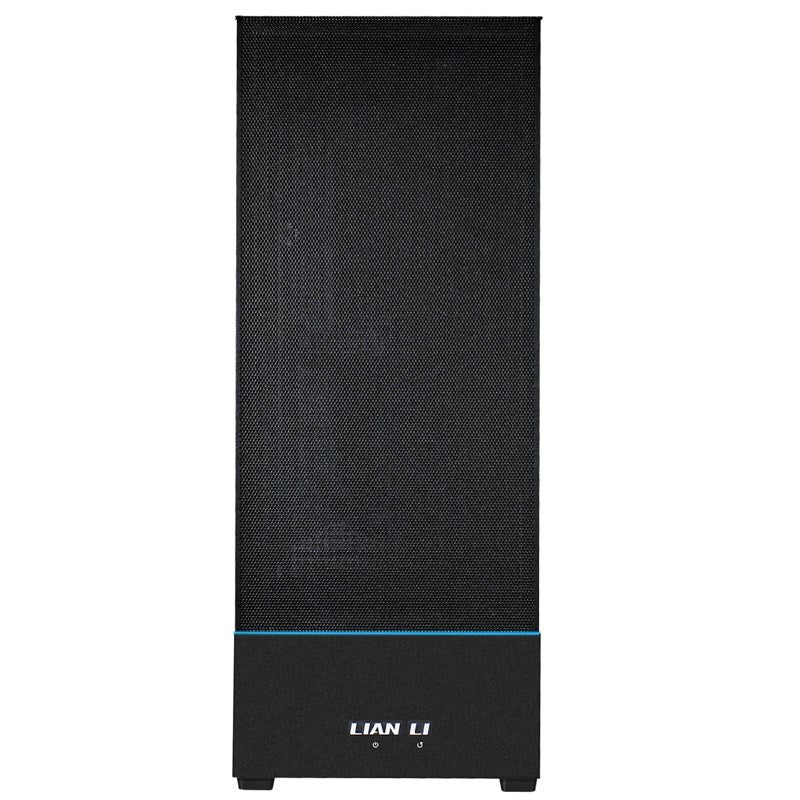

The GPU intakes direct cool air through the front mesh panel and expels heat through the side with three pre-installed 120mm fans, significantly enhancing thermal dissipation.

Direct Cooling for AIO

Mounting the radiator on the side of the chassis in the 2nd chamber allows it to draw cool air directly from the rear opening, efficiently expelling CPU heat through the side mesh panel.

*Cooling performance is better when the radiator is positioned outside against the mesh panel.

Direct Cooling for Motherboard Components

The 120mm fan installed at the rear exterior intakes fresh air, cooling M.2 storage, VRM modules, and memory directly for efficient heat dissipation through the top mesh panel, free from obstruction by radiators or components.

For balance airflow management and peak performance, configure all right-side fans for exhaust and the rear fan for intake, while relying on the GPU’s built-in fan for intake air.

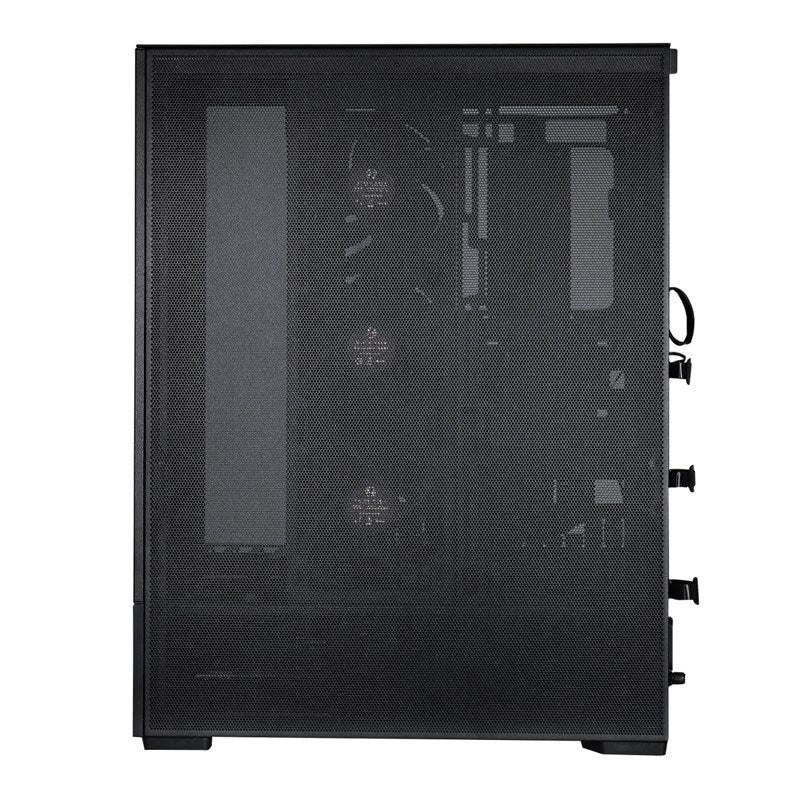

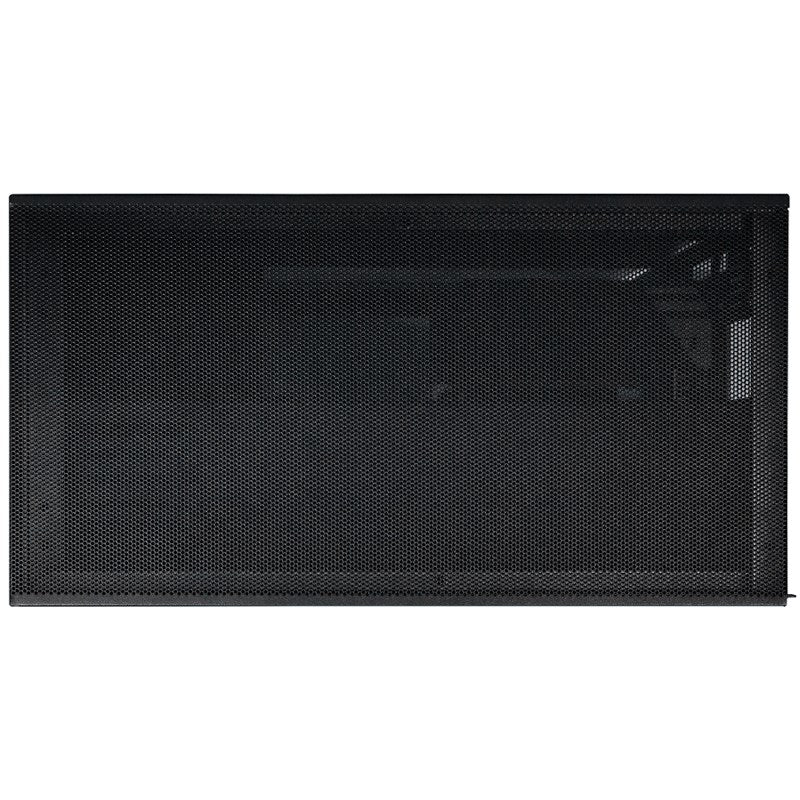

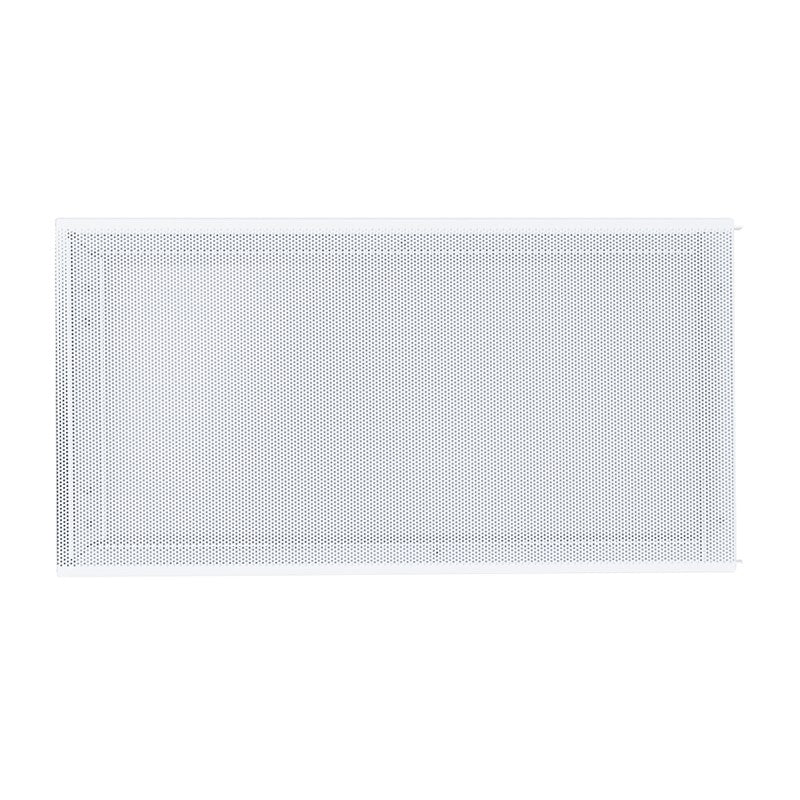

Unparalleled 3 Side Mesh Panels Airflow

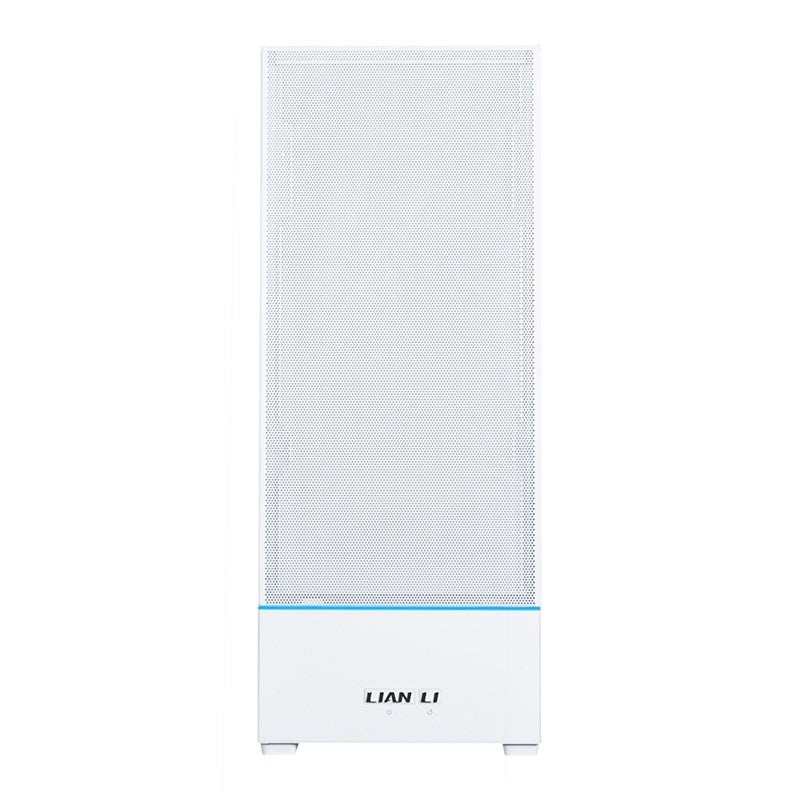

Featuring exquisite mesh panels on its front, side, and top, the SUP-01 offers seamless ventilation for optimized cooling.

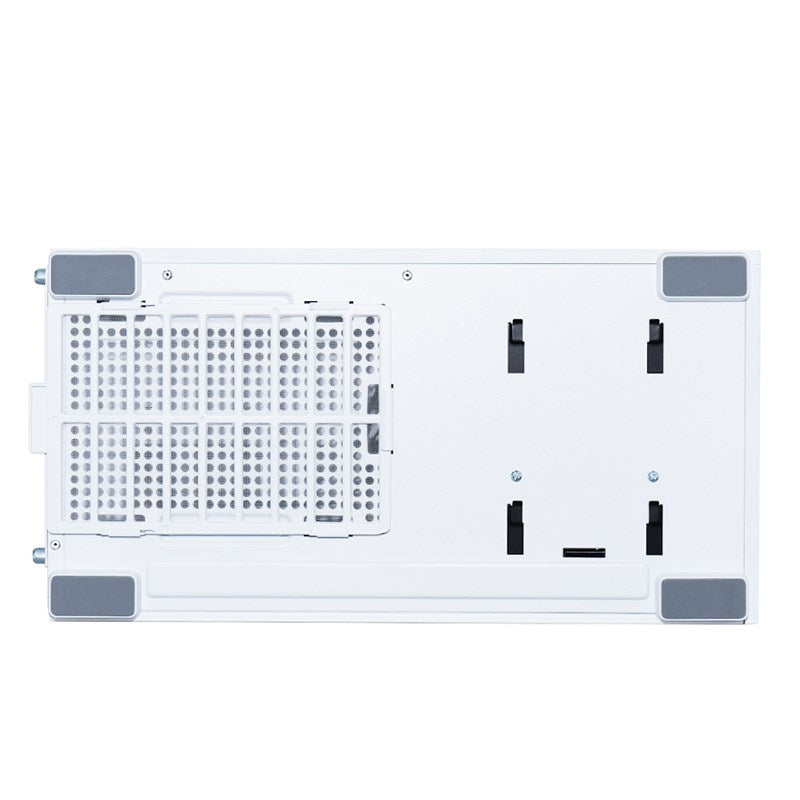

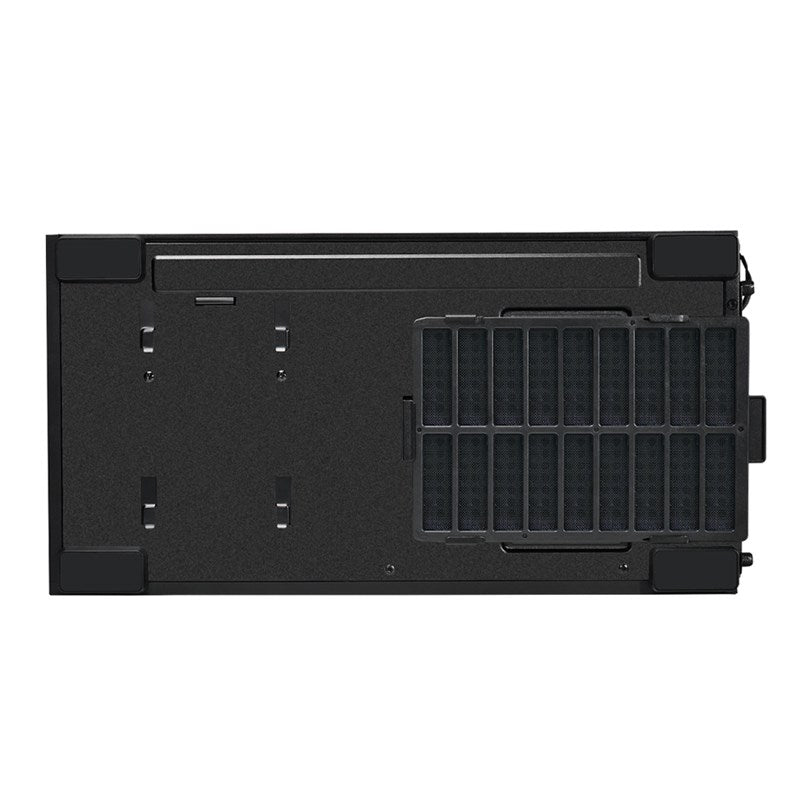

It is also equipped with three dust filters (magnetic filter on the top and front, tray filter on the bottom) for environments prone to dust accumulation.

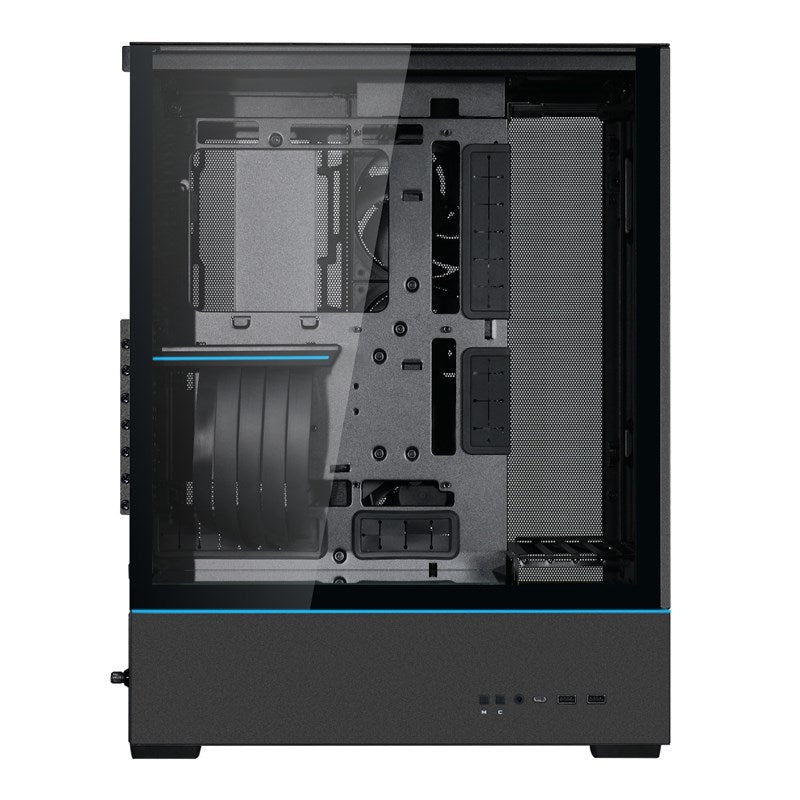

Front-Facing GPU Installation

The SUP01 displays your GPU at the forefront of the build for improved GPU thermal efficiency and a different aesthetic.

GPUs up to 4 slots thick are fully supported.

Flexible Installation Bracket

The GPU bracket is designed for vertical and horizontal adjustment to accommodate GPUs of different lengths and sizes.

Furthermore, a brace bracket at the top can be adjusted based on the GPU’s length (310~400mm) or thickness, ensuring GPU stability during transportation.

PCIe 4.0 Riser Bracket

Installing the GPU at the front is achieved through the help of the included 510mm PCIe 4.0 riser cable, which features a customizable ARGB light strip.

Plug And Ready to Play

Building a full system build with optimal cooling is as simple as installing essential components—CPU cooler, motherboard, memory, GPU, and power supply. No extra cooling accessories needed thanks to the pre-installed 120mm fans.

Included 3 X 120mm PWM Fans

Fan Speed: 300~1800 RPM

Max. Air pressure: 2.56mmH2O

Max. Airflow: 68.88 CFM

Versatile Motherboard Compatibility

Despite its compact form factor, the SUP01 doesn’t compromise on compatibility. It effortlessly accommodates motherboards ranging from ITX to standard ATX sizes.

Keeping pace with the evolving trends in the DIY market, the SUP01 goes the extra mile by supporting back-connect type ATX motherboards.

Customizable Storage Setup

The SUP01 offers multiple flexible storage installation options, supporting up to 4 × 2.5” SSDs or 2 × 3.5” HDDs simultaneously.

The PSU shroud houses a hard drive cage with 2 trays for SSDs or HDDs. It can be removed to provide additional routing cable space.

Additionally, 2 SSD mounting positions are in the main chamber above the PSU shroud. For a sleek finish, the SSD cover has a mirrored surface that creates an extended reflective look.

Personalized With Dual ARGB Strips

The front IO of SUP01, located at the bottom left side panel, offers easy access for lighting effects control for the ARGB strips wrapping around the top left/ front PSU shroud, and on the PCIe riser bracket. Offering 6 delightful lighting modes to create a personal touch.

User-Friendly Cable Management

To streamline the building process, the SUP01 focuses on user-friendly cable organization features.

ESP cable clips and multiple Velcro straps on the back of the motherboard tray facilitate seamless cable routing without blocking the rear I/O ports.

Velcro straps at the rear of the chassis secure cables connected to the motherboard’s rear I/O ports, reducing clutter and enhancing airflow.

Clips and a rubber grommet around the PSU shroud provide a tidy solution for GPU signal cable (HDMI/ DP) routing.

External placement of the PSU at the rear of the chassis allows easy access for cable management.

Rubber feet under the radiator and fan brackets helps hold them in place during cable management behind.

Specifications:
