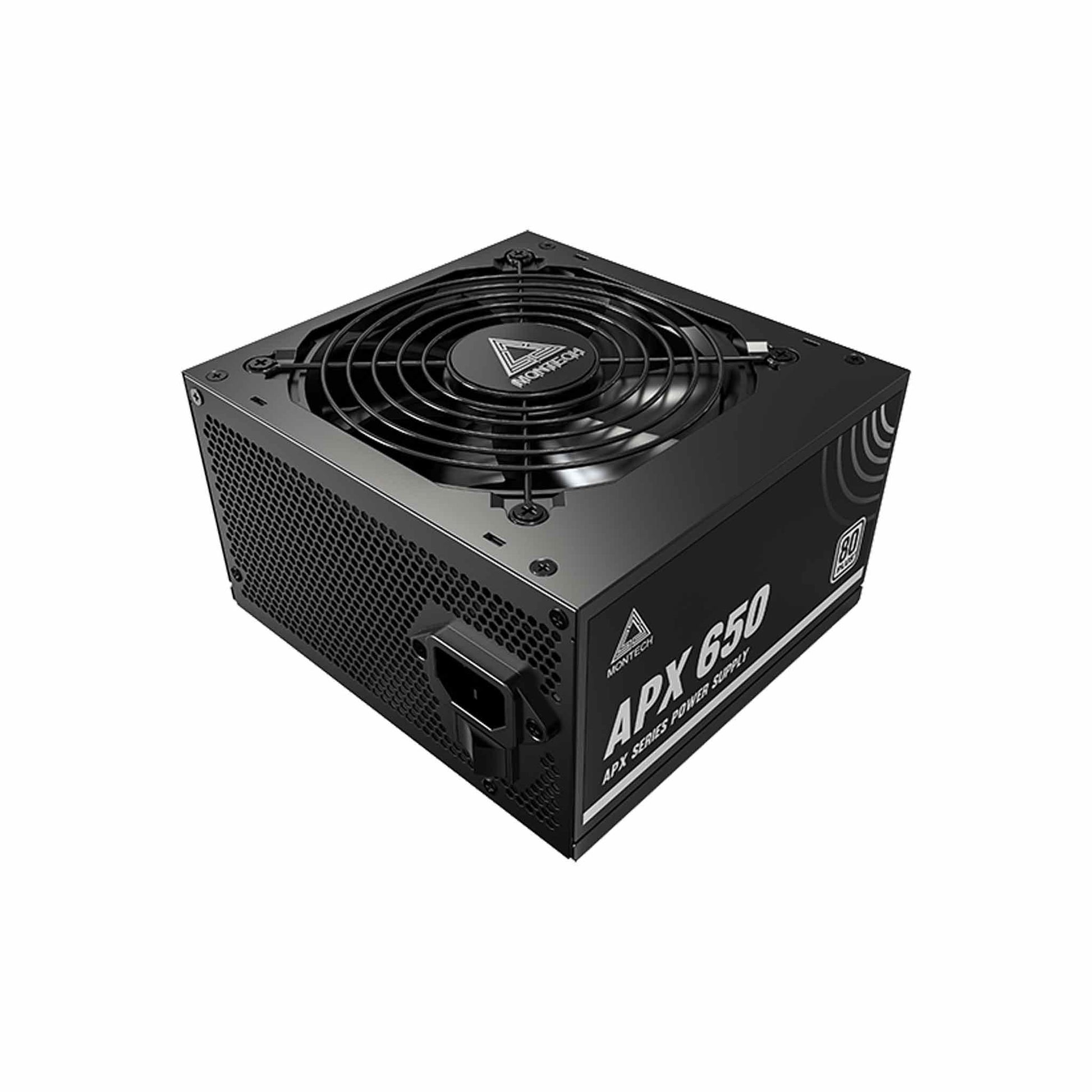

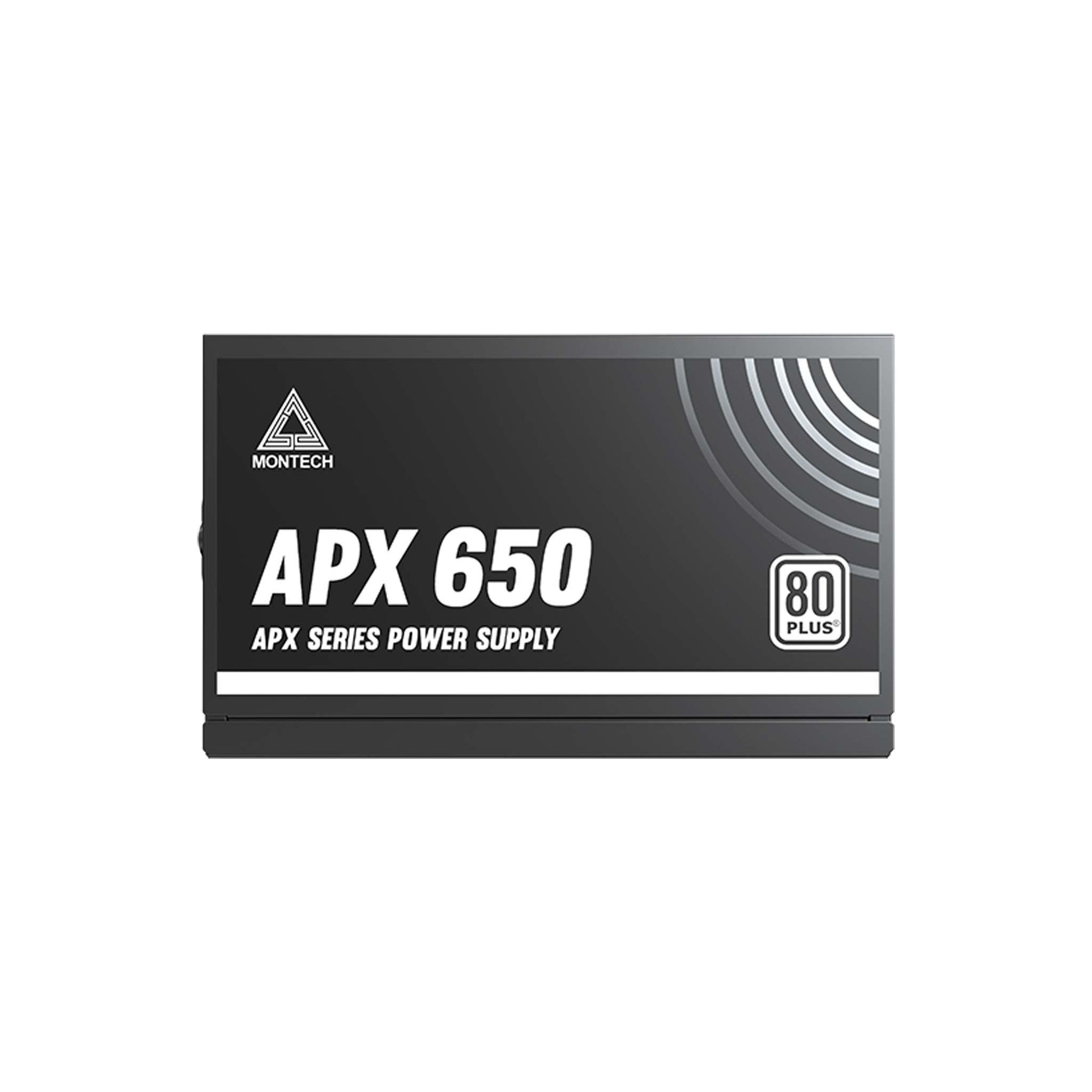

Montech APX 650W Power Supply White Grade - Black

• Product Name: APX 650W
• ATX Version: Intel ATX12V
• PFC: Active PFC
• Input Voltage: 100-240V AC
• Input Current: 12A
• Input Frequency: 50-60Hz
• Dimensions: 150 x 140 x 86 mm

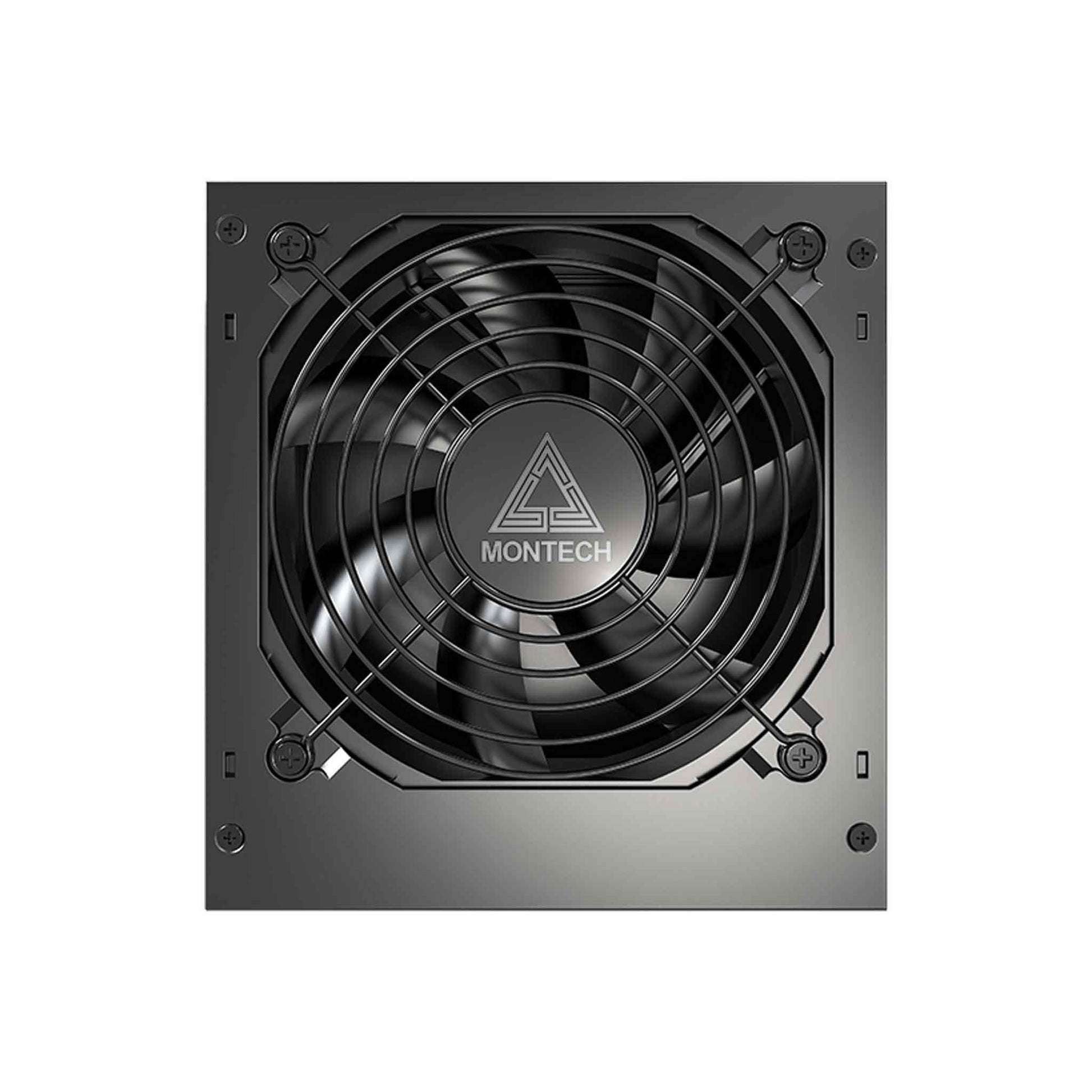

• Fan Size: 120 mm
• Efficiency: 80% (Typically)
• Operating Temperature: 0-45°C
• Protections: OVP, OPP, OTP, SCP, OCP, UVP
• Regulatory Compliance: cTUVus, TUV, CB, CE, RoHS, FCC-ICES, EAC, RCM, BSMI

Connectors:

• M/B 20+4 Pin: 1
• CPU 4+4 Pin: 2
• PCIe 6+2 Pin: 2
• SATA: 6
• Molex 4 Pin: 3

AC Input: 100-240V AC, 50-60Hz, 12A MAX

DC Output and Power:

• +3.3V: 18A, Max 100W
• +5V: 18A, Max 100W
• +12V: 54.1A, Max 649.2W
• -12V: 0.3A, Max 3.6W
• +5VSB: 2.5A, Max 12.5W
• Total Power: 650W
