NZXT H710 E-ATX Gaming Mid Tower Case

The NZXT H710 Mid-Tower Case

The NZXT H710 Mid-Tower Case features a sleek and minimalistic design with plenty of helpful additions for a clean and easy build.

Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back.

Smarter Design

It supports up to an ATX motherboard, multiple 3.5" and 2.5" storage drives, and three dual-slot graphics cards.

Whether you choose to liquid cool or not, the H710 supports up to three 120/140mm fans at the front, a 120/140mm fan at the rear, and another three 120/140mm fans at the top.

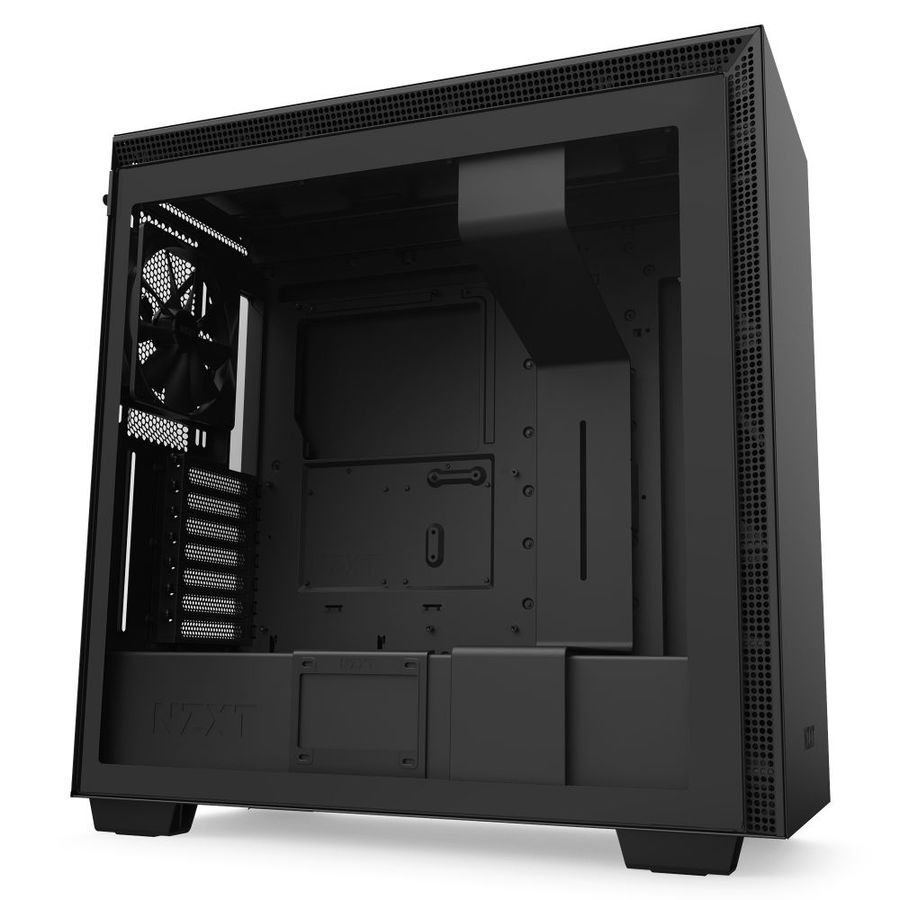

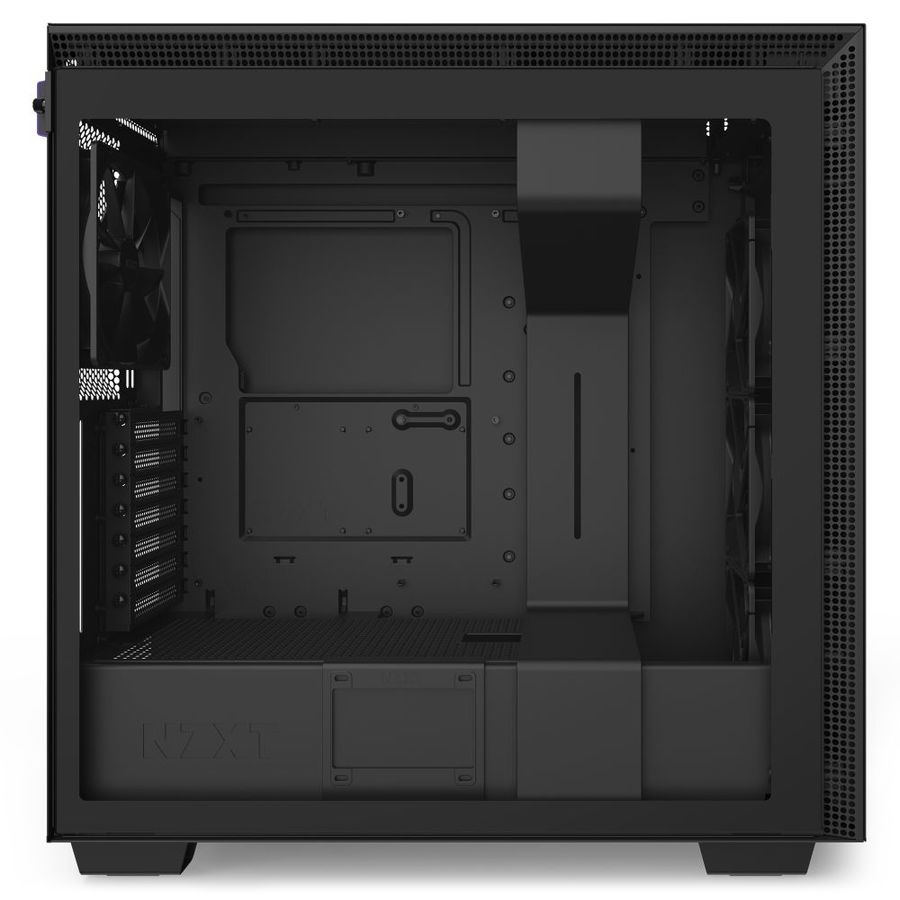

Thanks to its tempered-glass side panel, you can show off your hardware along with any custom LED lighting.

More Modern

With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

Eye Catching

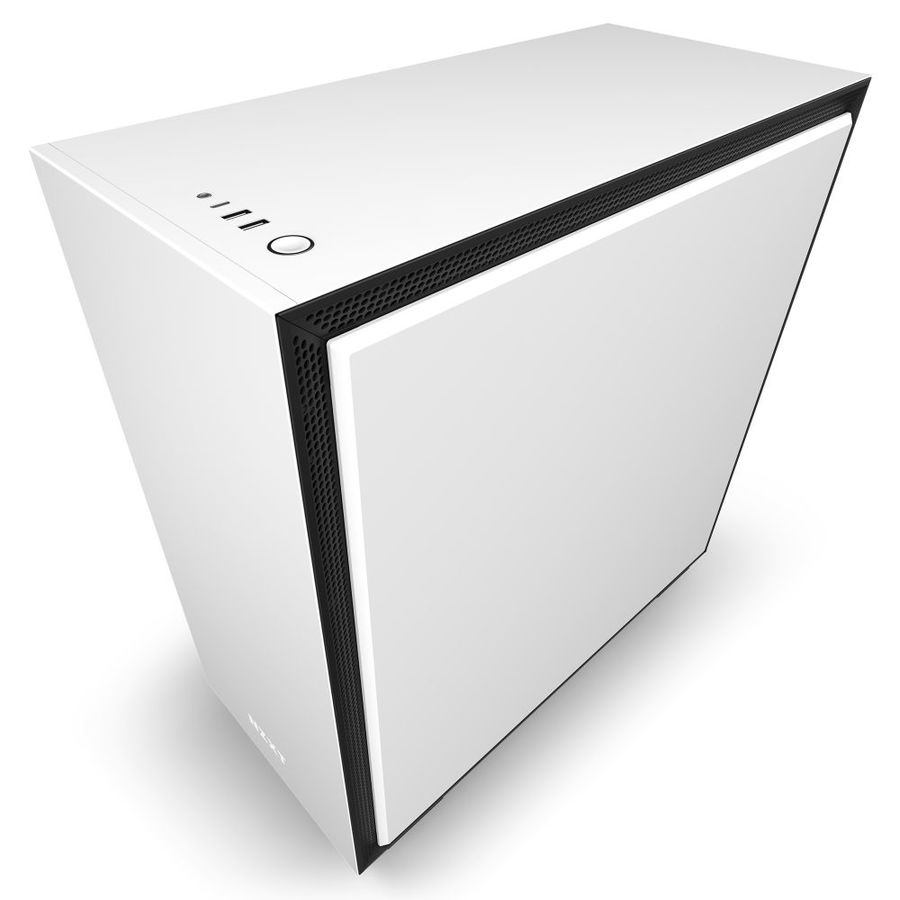

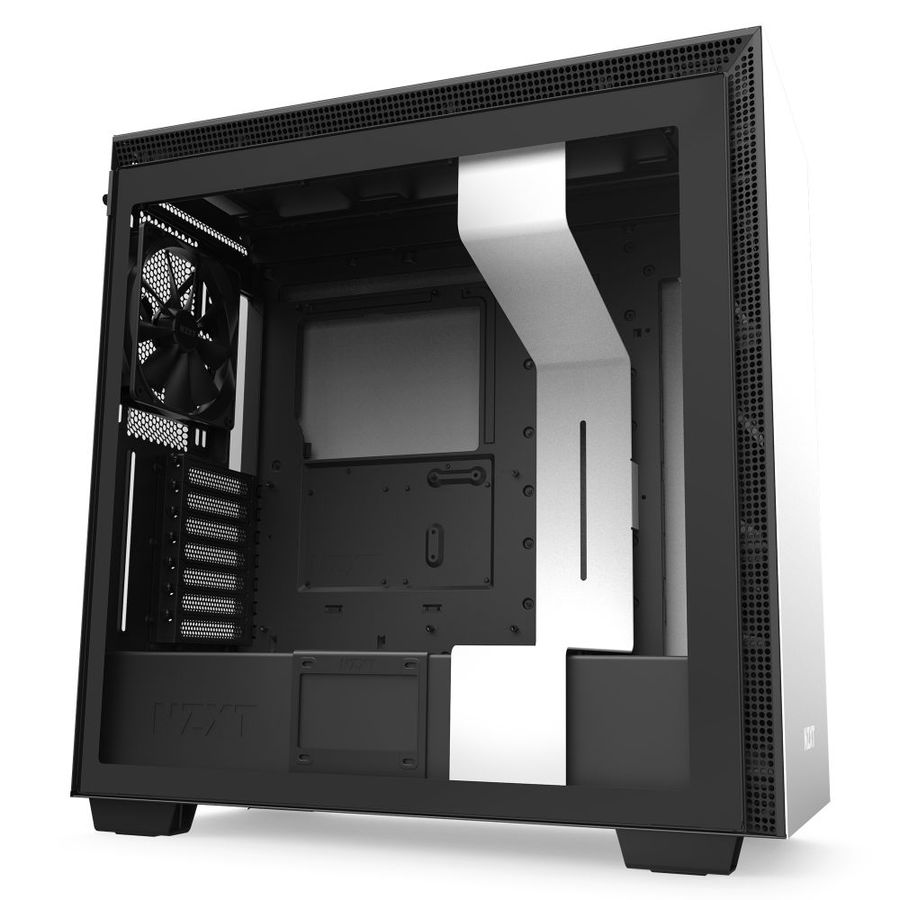

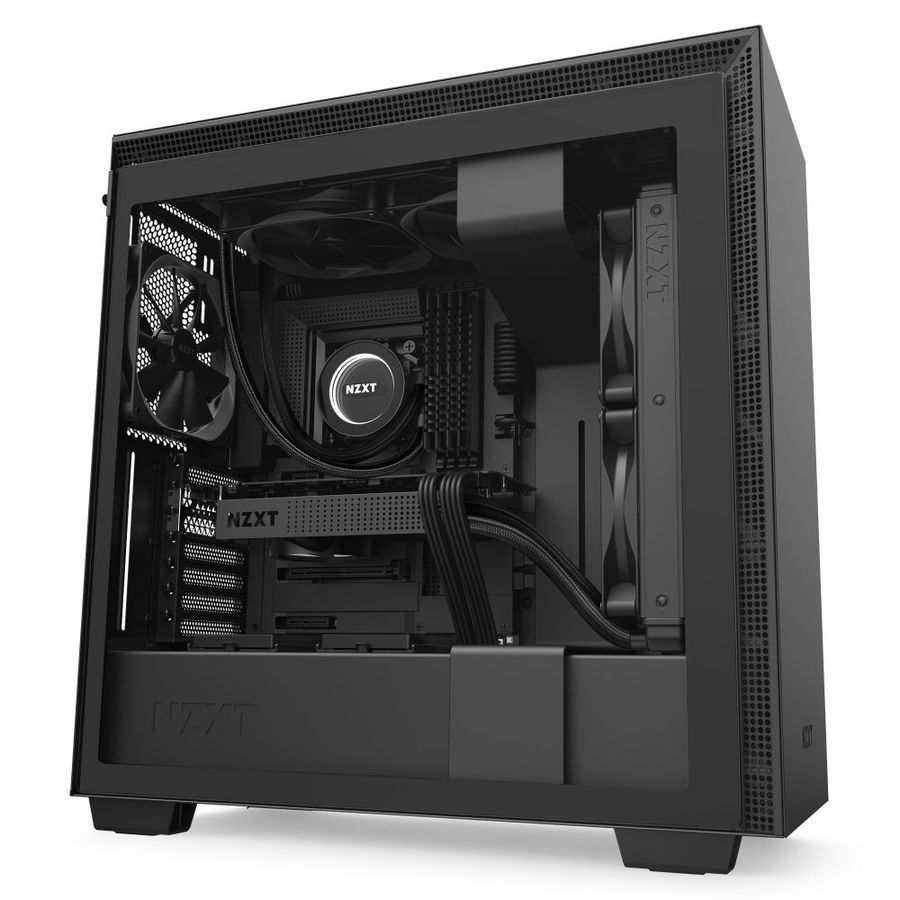

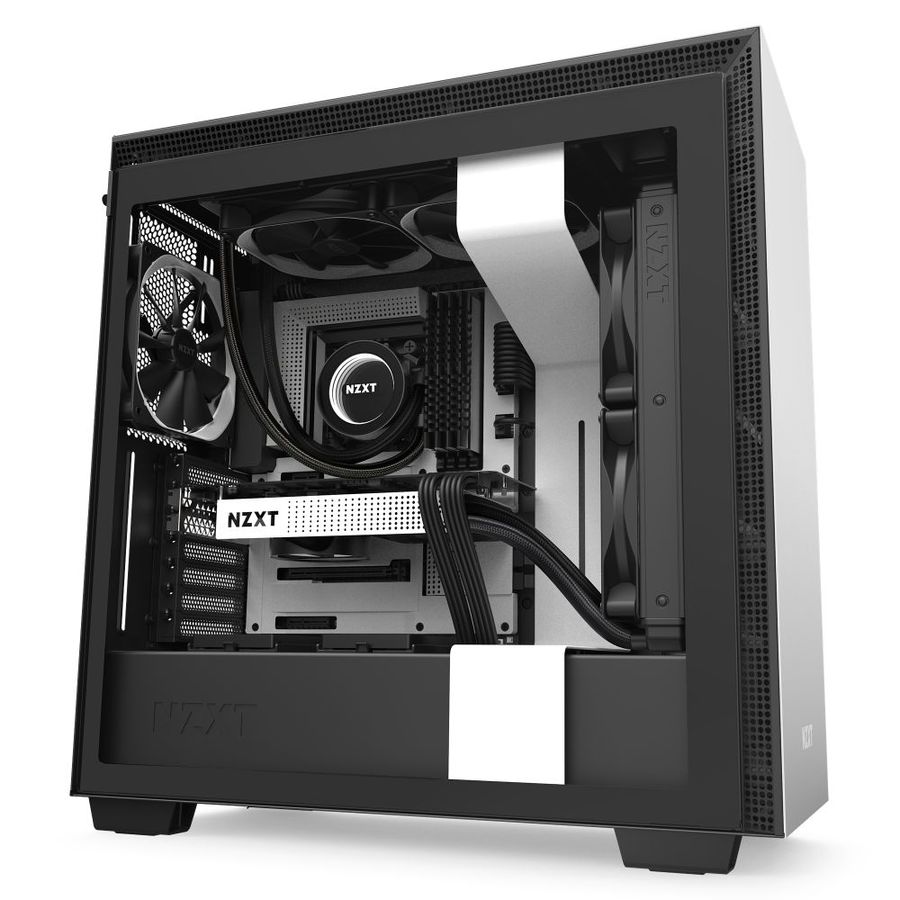

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

Enjoyable Builds For All

Cable management can often take more time than assembly.

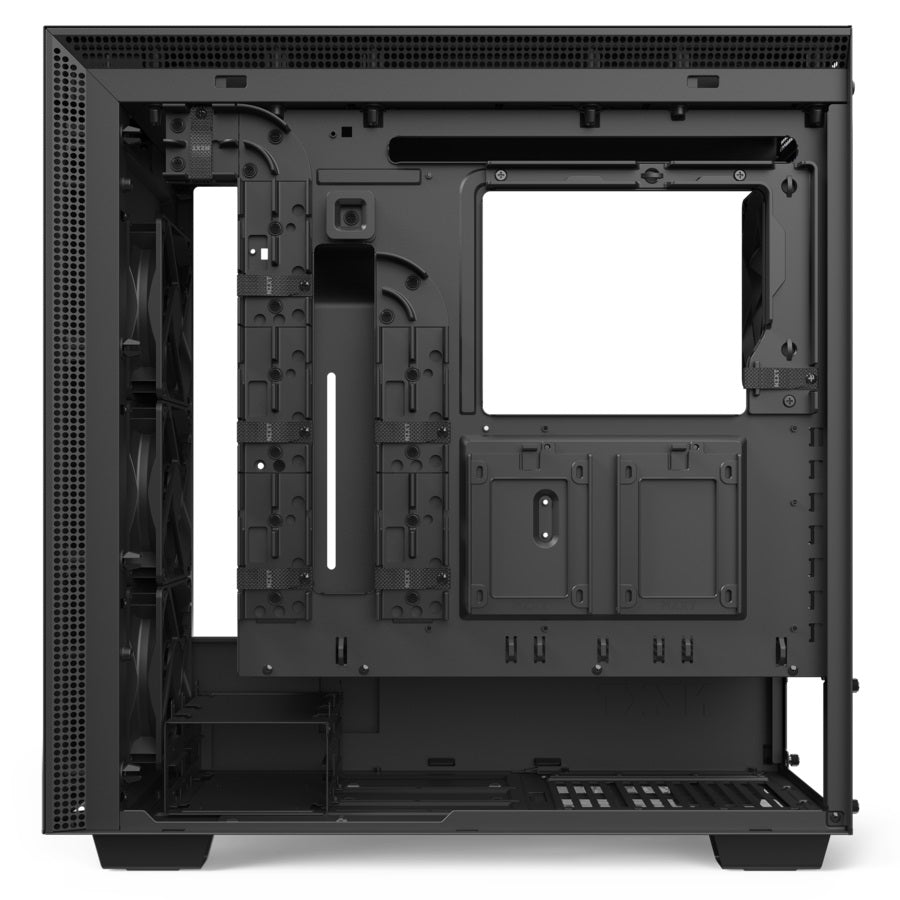

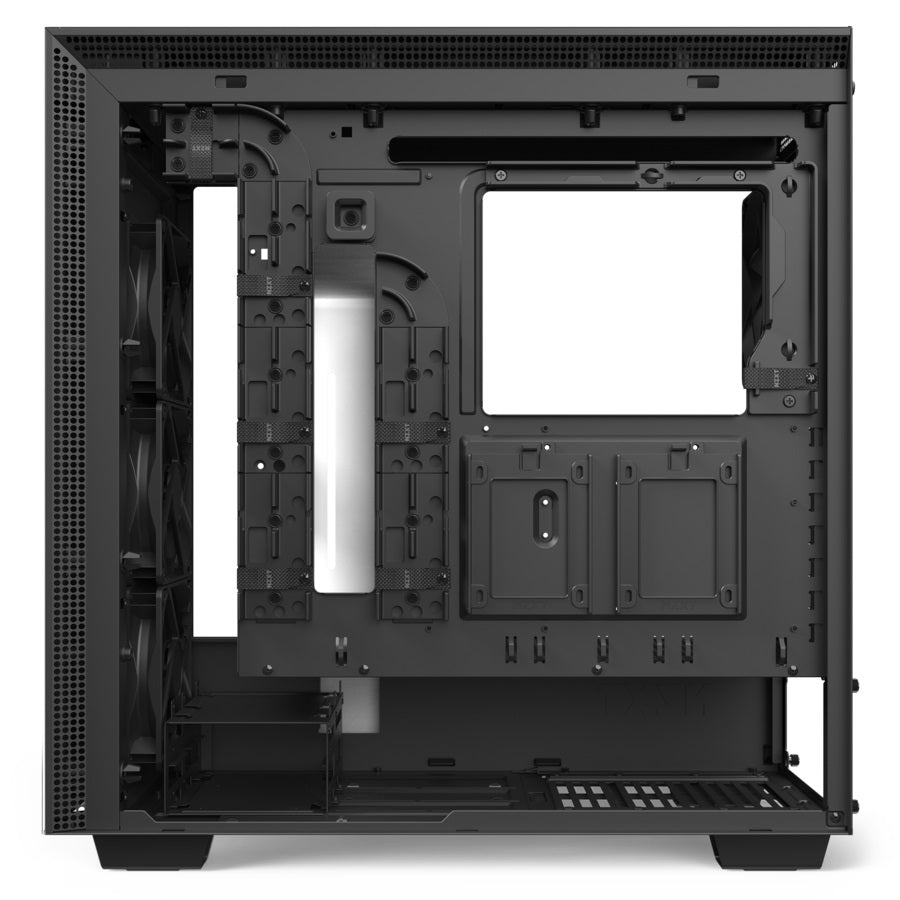

We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.

Simple Installation

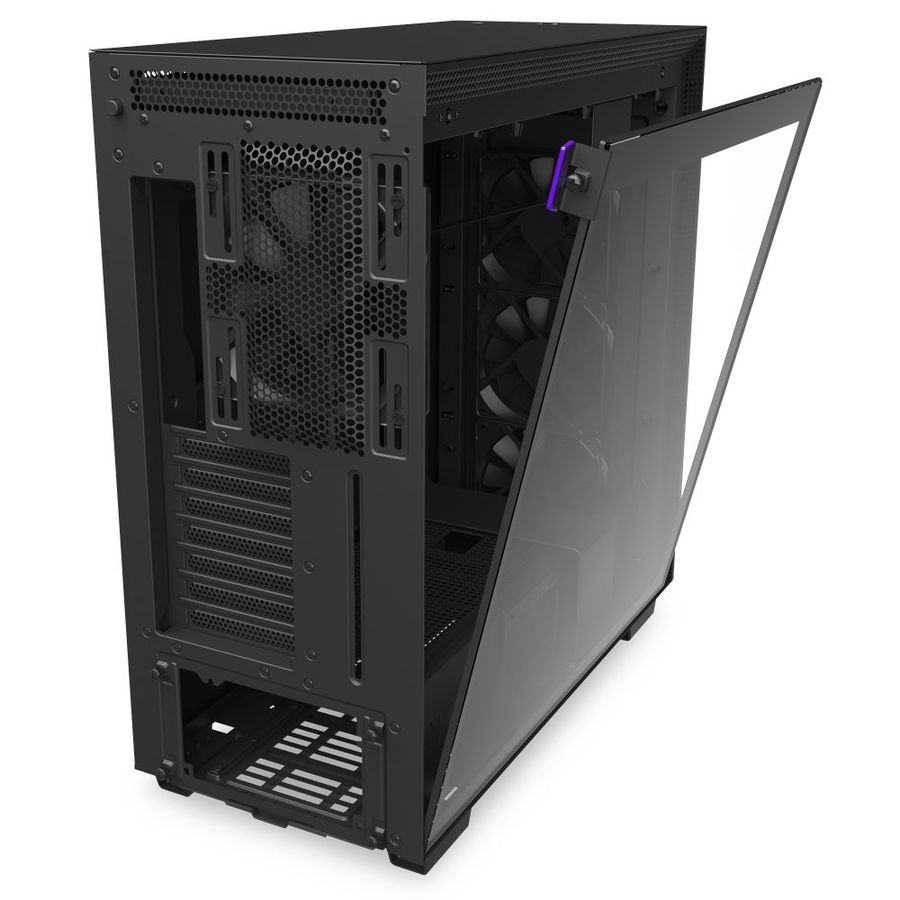

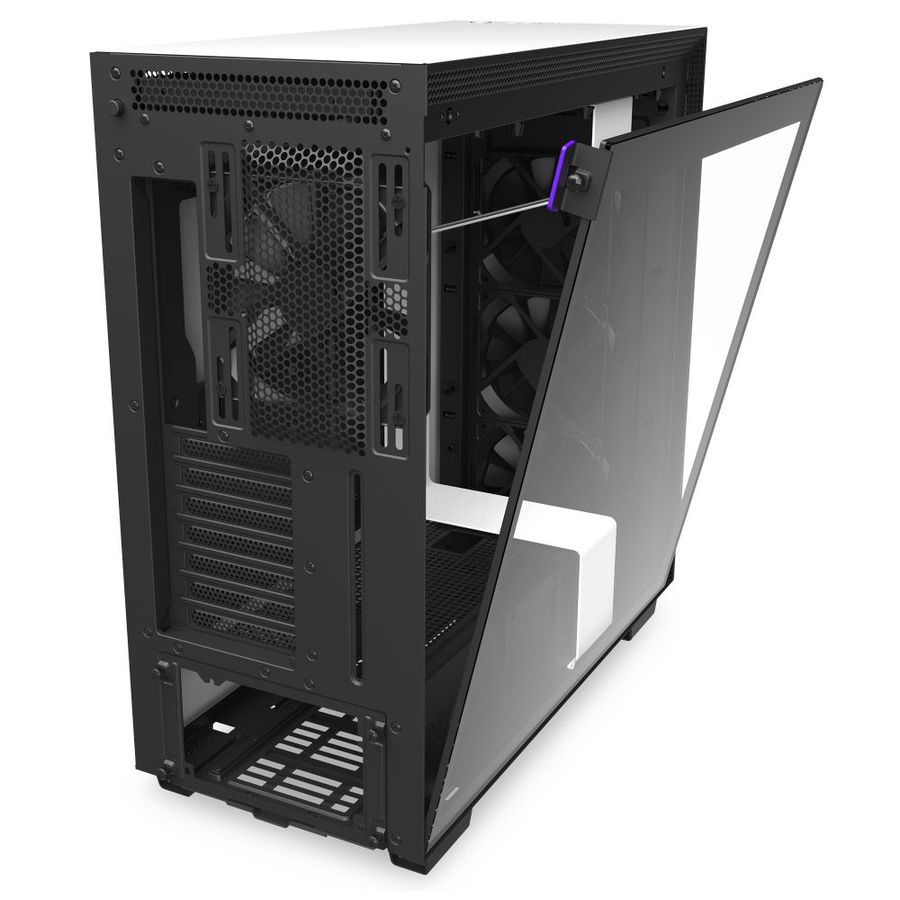

Tempered glass side panel now installs with a single thumb screw.

Streamlined Cooling

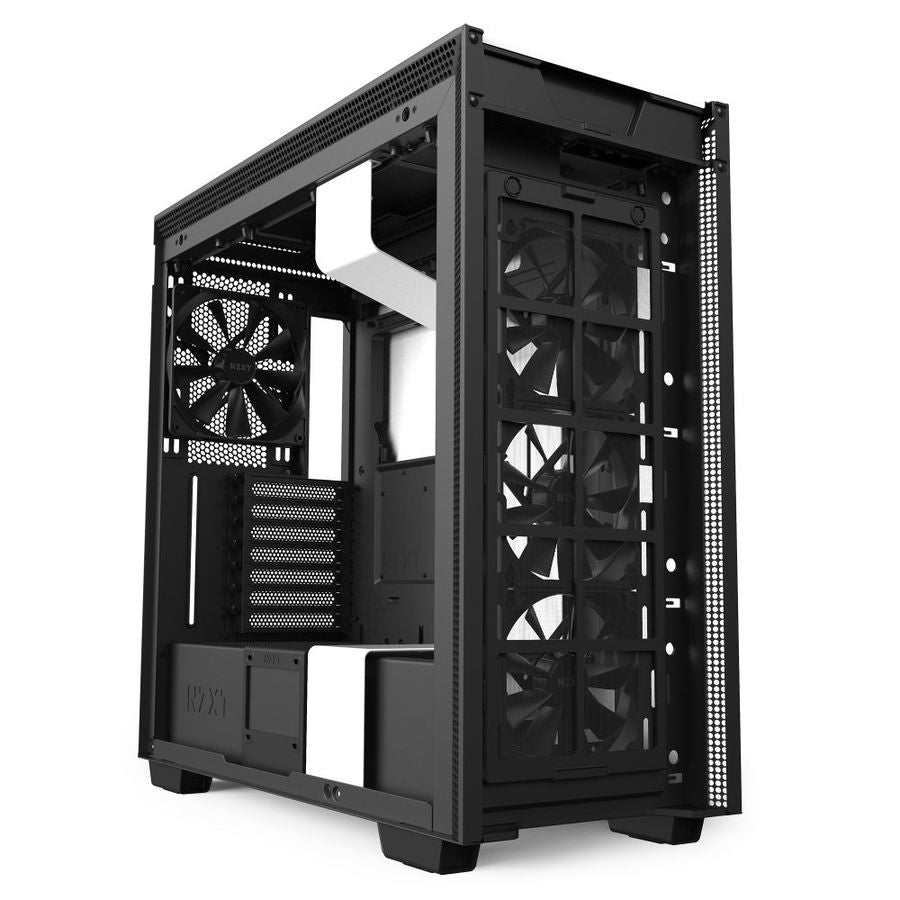

A front bracket designed for radiators up to 280mm makes installing water-cooling simple.

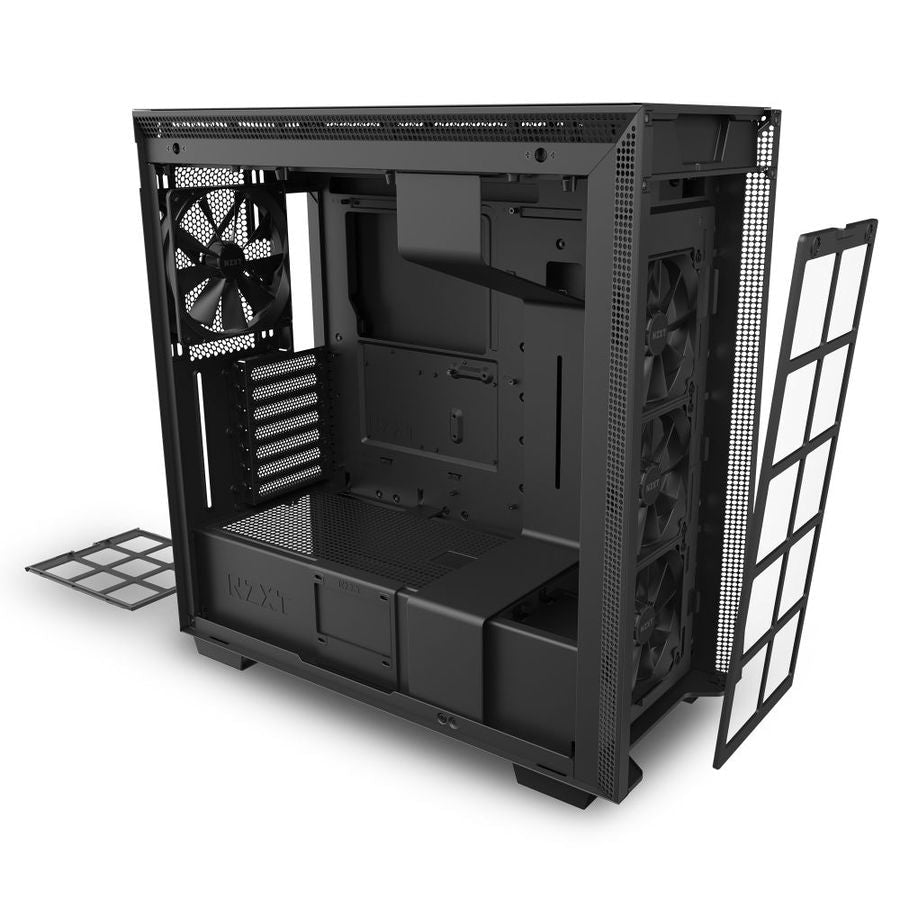

Two Aer F 120mm fans are included for optimal internal airflow and the front and PSU intakes include removable filters.

Dimensions

W: 230mm H: 516mm D: 494mm (with feet)

Material(s)

SGCC Steel and Tempered Glass

Weight

12.1 kg

Motherboard Support

Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches)

Front I/O Ports

1x USB 3.1 Gen 2 Type-C

2x USB 3.1 Gen 1 Type-A

1x Headset Audio Jack

Front I/O internal header

1x USB 3.1 Gen 2 Internal Header

1x USB 3.1 Gen 1 Internal Header

1x HD Audio Header

Filters

All Air Intakes

Included Accessories

Installation screws

10x Cable ties

1x Headset Audio Jack Splitter (4 pole to 3 pole)

Expansion Slots

7

Drive Bays

2.5”: 7

3.5”: 2+2

Radiator Support

Front: 2x 140 or 3x 120mm with Push/Pull

Top: 2x 140 or 3x 120

Rear: 1x 120

Fan Support

Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included)

Top: 3x 120/2x 140mm

Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)

Fan Specs

Aer F120 (Case Version)

Speed: 1200 ± 200 RPM

Airflow: 50.42

CFM Noise: 28 dBA

Bearing: Rifle Bearing

Aer F140 (Case Version)

Speed: 1,000 ± 200 RPM

Airflow: 68.95 CFM

Noise: 29 dBA

Bearing: Rifle Bearing

Clearance

Cable Management: 18-22mm

GPU Clearance: Up to 413mm

CPU Cooler: Up to 185mm

Front Radiator: 60mm

Top Radiator: 30mm

Reservoir & Pump: Up to 224mm (Along cable bar)
