Specifications:
Product Name
|

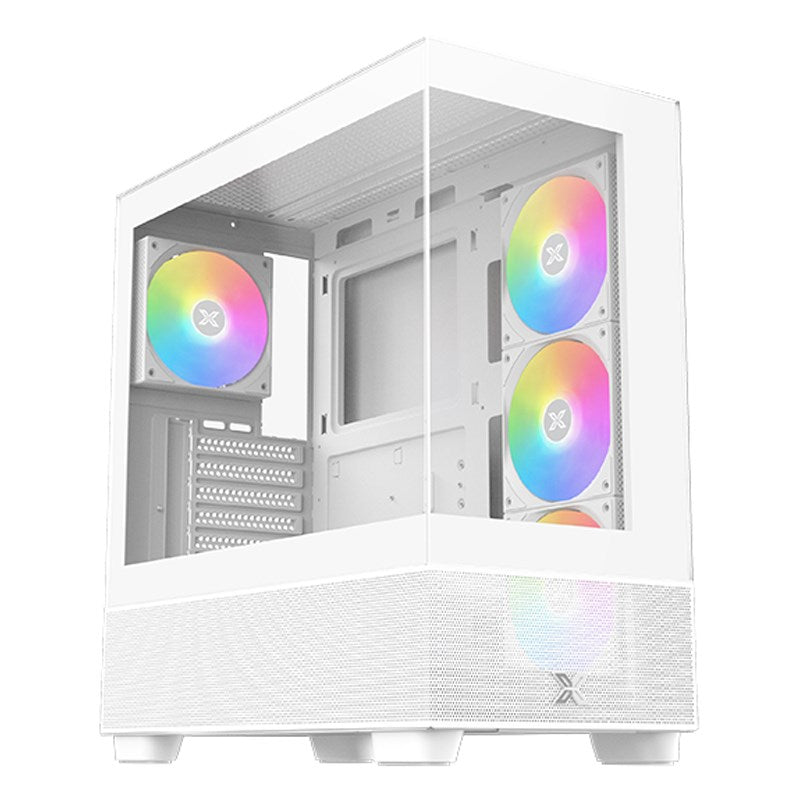

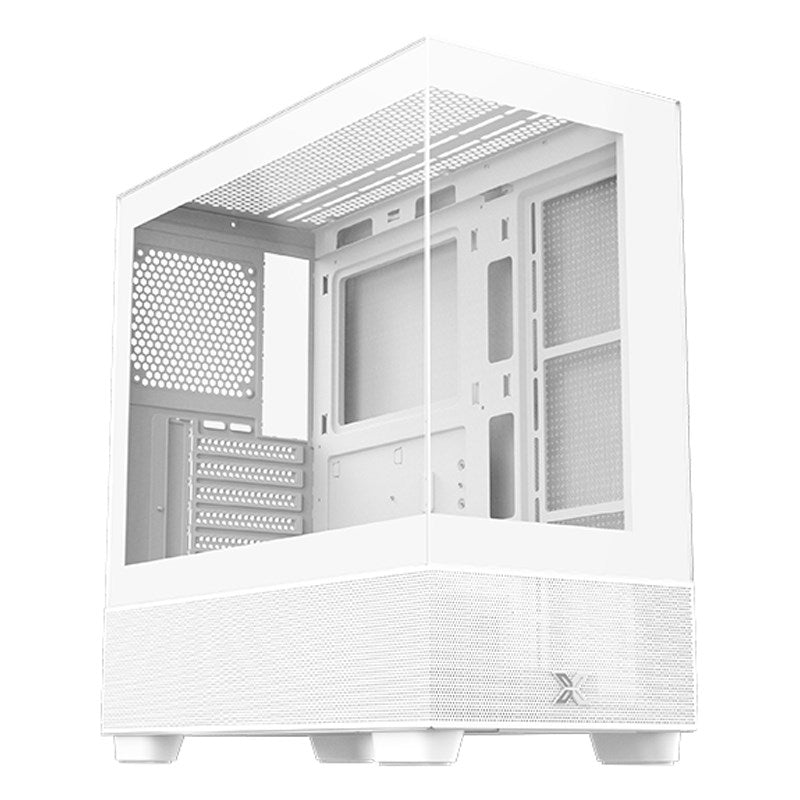

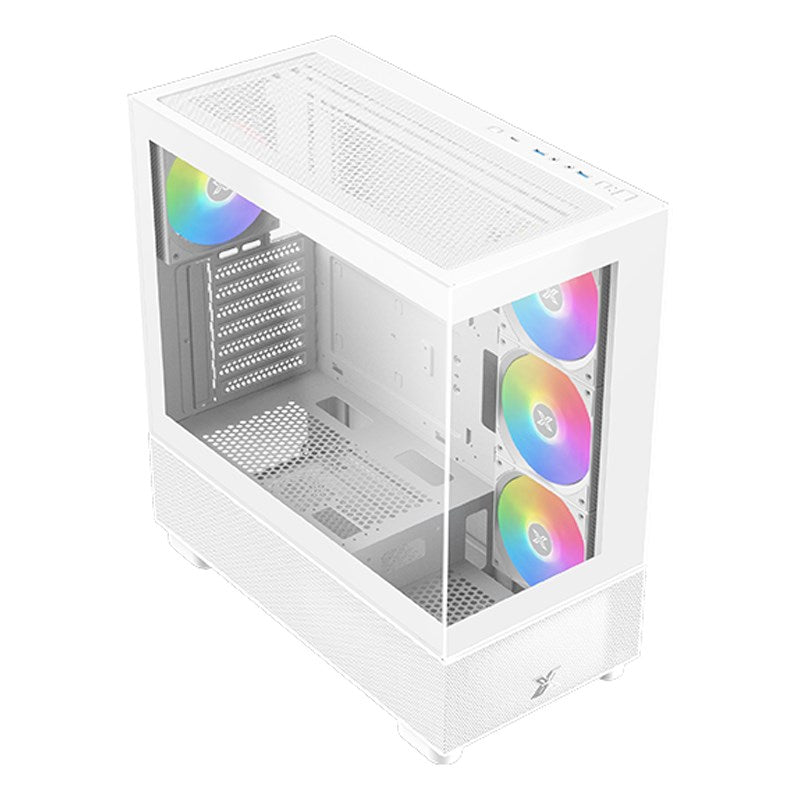

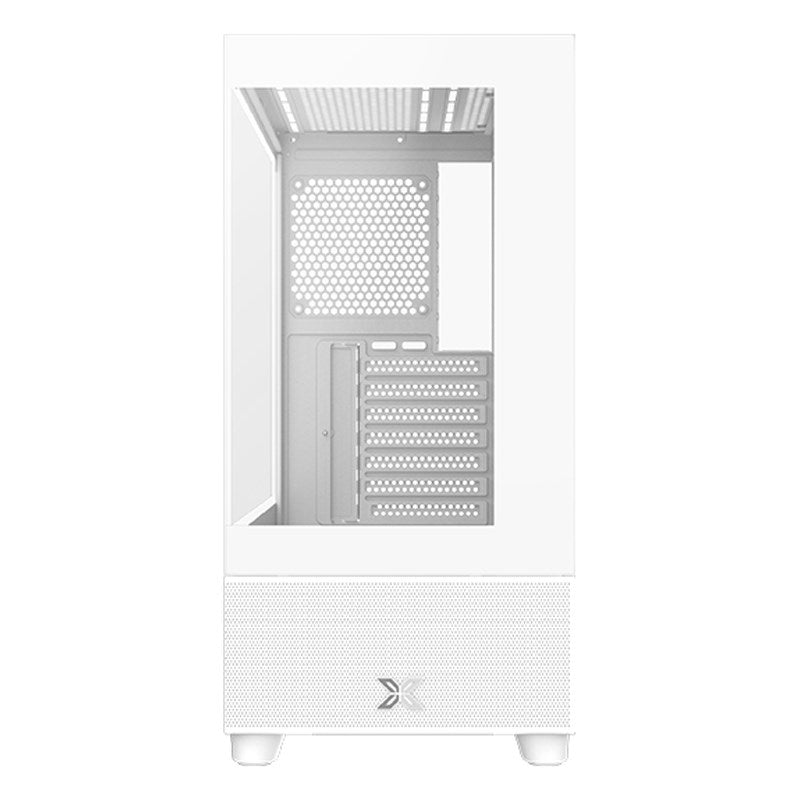

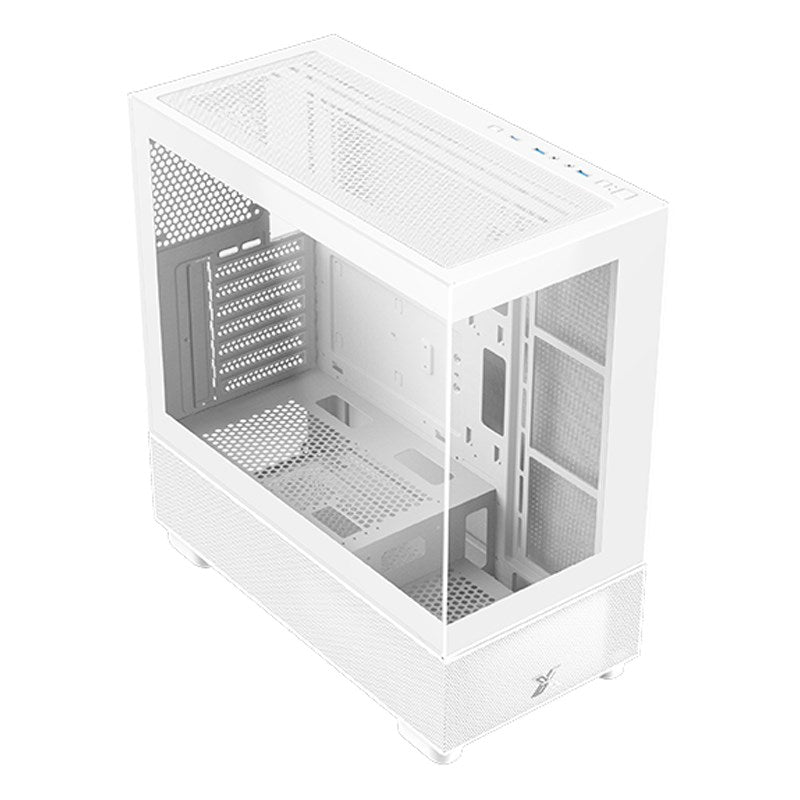

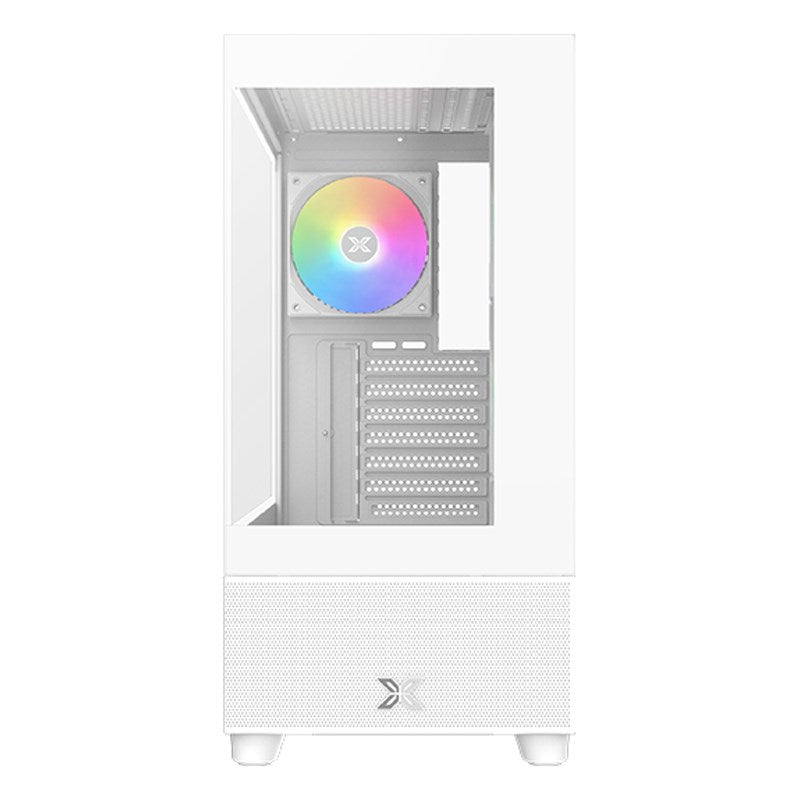

Endorphin Air V2
|
Material
|
Steel
|
Dimensions
|
435x218x456mm(LxWxH)
|
Drive Bays
|
HDD Cage(Bottom): 3.5″ x1
|
|
HDD Cage(Top): 3.5″ & 2.5″ Combo x1
|
|
SSD Bracket: 2.5″ x2
|
Expansion Slots
|
7 Standard Slots
|
Motherboard Support
|
E-ATX, ATX, M-ATX, Mini ITX
|
Power Supply
|
Standard PS2 ATX PSU
|
Fan Support
|
Top: 120mm x3 or 140mm x2
|
|
MB: 120mm x3 (EATX MB Width ≤28cm)
|
|
HDD Cage: 120mm x1
|
|
PSU Shroud: 120mm x2
|
|
Rear: 120mm x1
|
Radiator Support
|
Top: 360mm
|
|
(Memory Height ≤45mm)
|
|
MB Panel: 240mm
|
|
(EATX MB Width ≤28cm)
|
|
Rear: 120mm
|
I/O Panel
|
USB3.0 x2
|
|
Type C x1
|
|
HD Audio
|
CPU Cooler Clearance
|
170mm
|
VGA Length Limitation
|
285mm
|
|
(Fan on MB Panel)
|
|
420mm
|
|
(No Fan on MB Panel)
|
PSU Length Limitation
|
220mm
|
|
