XPG CYBERCORE II 1000W Platinum Modular Power Supply

Description:

Dimensions (L x W x H)

• 160 x 150 x 86mm

Cybenetics Rating

• PLATINUM

80 Plus Rating

• PLATINUM

ATX Version

• ATX 3.0

Protections

• OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification

• CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC

• > 0.99

Input Voltage

• 100-240V

Input Current

• (2)1000W：13A

Input Frequency

• (2)1000W：50-60Hz

DC Output Voltage

• +5V | +3.3V | +12V | -12V | +5Vsb

Total Output

• (2) 1000W

Power Excursion

• 1000W: 2000W (*up to 200% of the PSU's rated power for 100μs)

Operating Temperature

• 50°C

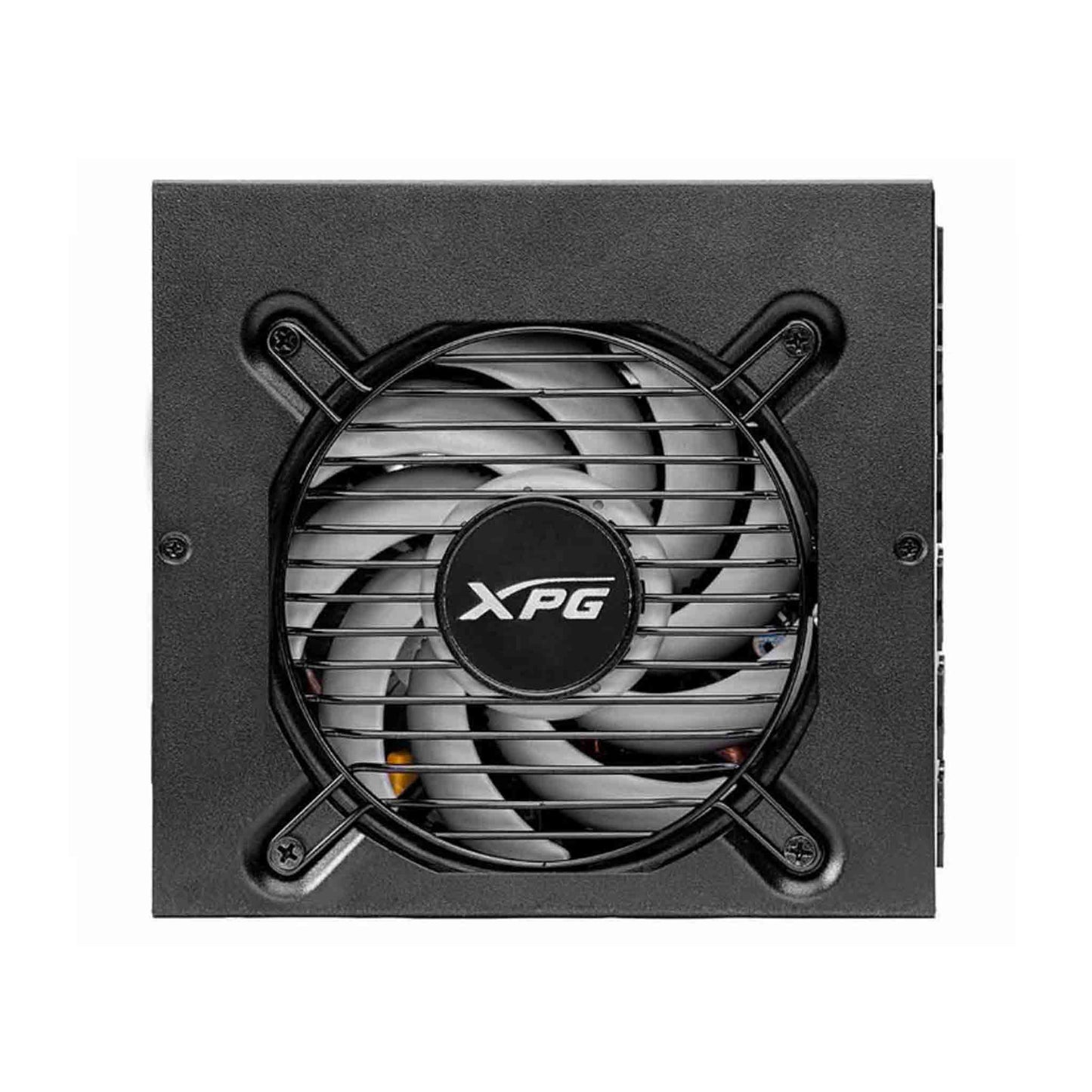

Fan Size

• 120mm

Fan Bearing

• Double Ball Bearing

Fan Speed

• 2,150 RPM

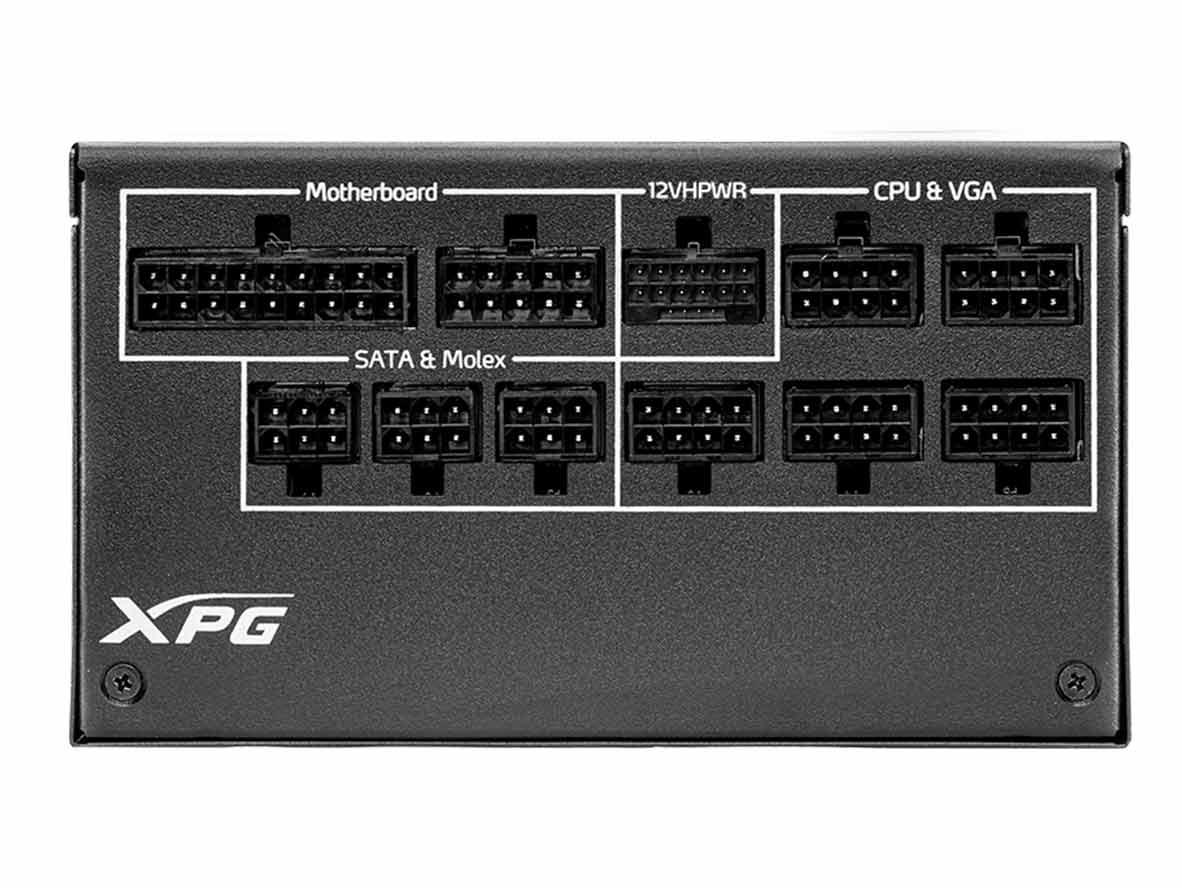

ATX 24 Pin Connector

• 1000W：1

EPS 8 Pin Connector

• 1000W：2

PCI-E 6+2 Pin Connector

• 1000W：6

Molex 4 Pin Connector

• 1000W：4

12VHPWR (12 + 4) Connector (600W)

• 1

SATA Connector

• 1000W：8

Floppy 4 Pin Connector

• 1000W：1

Weight

• 1000W：
• Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%
• with Package：4.13kg (9.1lb) ±5%
